Unit · AXIAL-PISTON PUMP
AP A10V O140 DRG /31L-PSD12K07 -SO808R910997207
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO140DRG/31L-PSD12K07-SO808, material number R910997207. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Hydraulic Remote controlled (DRG). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 808.
- Number
- R910997207
- Type code
- AP A10V O140 DRG /31L-PSD12K07 -SO808
- Group
- A10VO 140
- Edition
- 06/2020

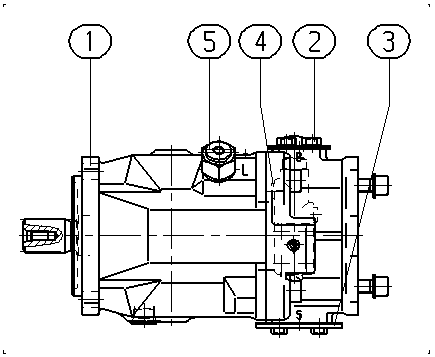

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910997206 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R902602012 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | With pressure cut-off Hydraulic Remote controlled | DRG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
