Unit · BASE UNIT
G A10VSO 18 OV /31R-VSC12N00 -SO944R910997430
Base unit Bosch Rexroth series A10VSO, type code GA10VSO18OV/31R-VSC12N00-SO944, material number R910997430. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 944.
- Number
- R910997430
- Type code
- G A10VSO 18 OV /31R-VSC12N00 -SO944
- Group
- A10VSO 18
- Edition
- 06/2020

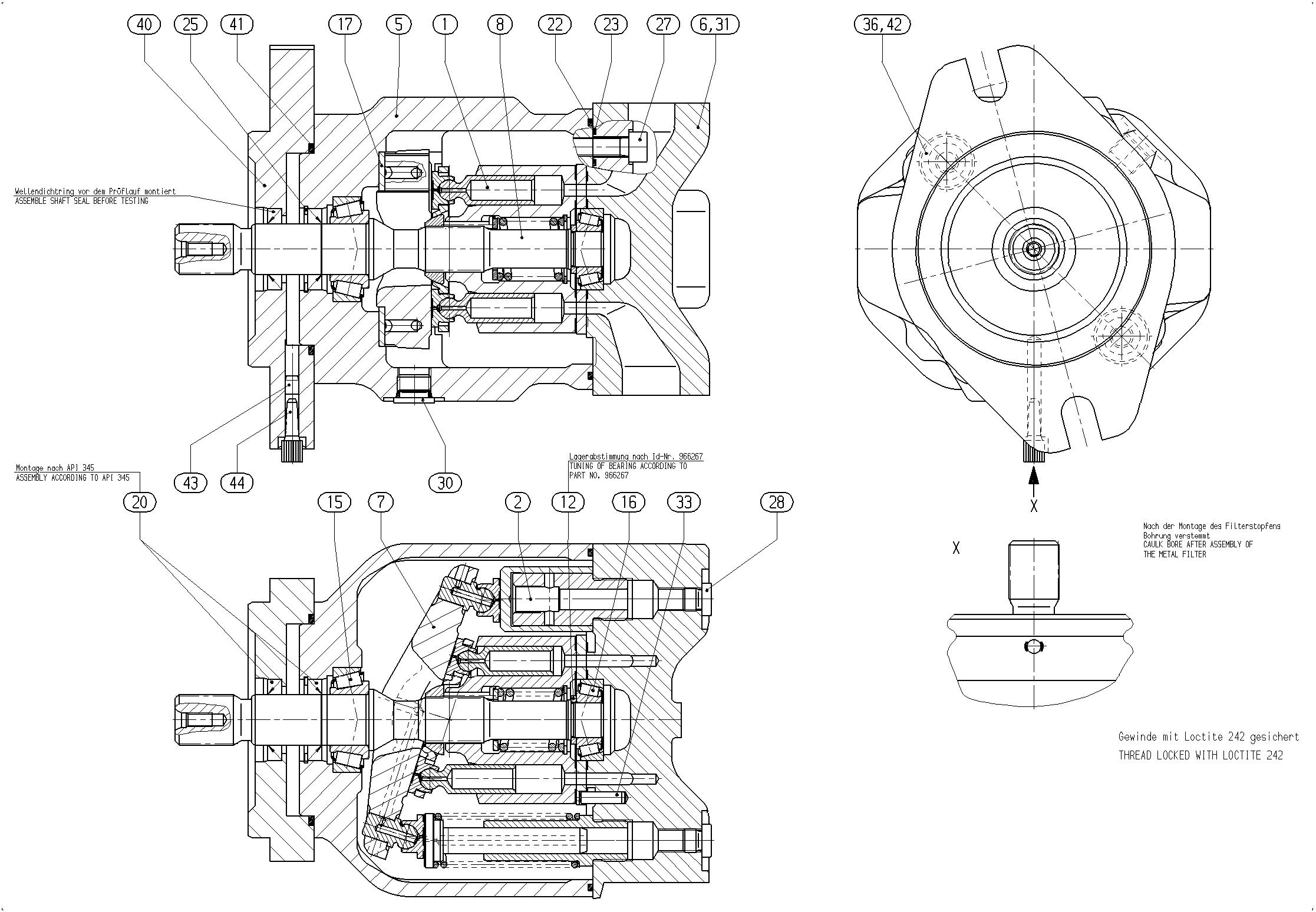

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910940435 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910942543 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910925613 | PUMP HOUSING | 1 | ||
| R910976709 | CONNECTION PLATE | 1 | ||
| R910960809 | SWASH PLATE | 1 | ||
| R902411984 | DRIVE SHAFT | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 1 | ||
| R910925266 | BEARING SHELL | 2 | ||
| R910900853 | SHAFT SEALING RINGD | 2 | ||
| R910928325 | O-RINGD | 1 | ||
| R913052100 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUG | 2 | ||
| R909157039 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910277193 | STRAIGHT PIN | 1 | ||
| R902650189 | WASHER | 2 | ||
| R902417664 | ADAPTER FLANGE | 1 | ||
| R910357049 | O-RING | 1 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 | ||
| R910970159 | PLUG | 1 | ||
| R910973909 | GUARD PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
Other versions 8
- R902402214 G A10VSO 18 OV /31R-VSC12N00 -S1016
- R902531764 G A10VSO 18 OV /31R-VSC12N00 -S1413
- R902540798 G A10VSO 18 OV /31R-VSC12N00 -S2643
- R902453039 G A10VSO 18 OV /31R-VSC12N00 -SO 94
- R910969847 G A10VSO 18 OV /31R-VSC12N00 -SO704
- R910990974 GA10VSO18OV/31R-VSC12N00
- R910998604 GA10VSO18OV/31R-VSC12N00-S2642
- R902566068 GA10VSO18OV/31R-VSC12N00-S4823
