Unit · AXIAL-PISTON PUMP

AA10VSO100DR/31R-PPA12N00-SO277R910997818

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100DR/31R-PPA12N00-SO277, material number R910997818. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 277.

Number: R910997818
Type code: AA10VSO100DR/31R-PPA12N00-SO277
Group: A10VSO 100
Edition: 06/2020

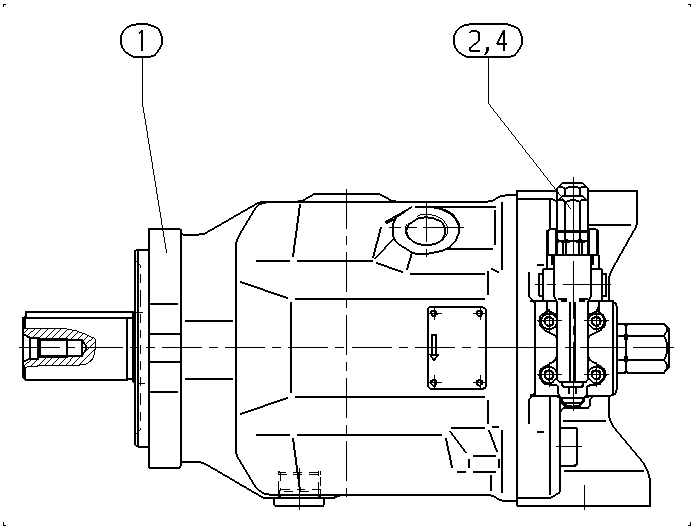

AA10VSO100DR/31R-PPA12N00-SO277 — Drawing

Pos.	Number	Name	Qty	Add to inquiry
	R910906868	BASE UNIT Assembly parts list →L	1
	R902539709	CONTROL VALVE Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar	A10VS
Operating mode	Pump, open circuit	O
Size (NG)	100	100
Control device	Pressure controller hydraulic	DR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid	P
Drive shaft	Parallel keyed shaft DIN 6885 permissible through-drive torque	P
Mounting flange	ISO 3019-2 2-hole	A
Working port	SAE flange ports according to ISO 6162, metric fastening thread laterally opposite	12
Through drive	Without through drive	N00

Parameters from the type code
