Unit · AXIAL-PISTON PUMP
A A10V O 45 DFR1/31W-PSC11N00 -SO956R910998149
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFR1/31W-PSC11N00-SO956, material number R910998149. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 956.
- Number
- R910998149
- Type code
- A A10V O 45 DFR1/31W-PSC11N00 -SO956
- Group
- A10VO 45
- Edition
- 06/2020

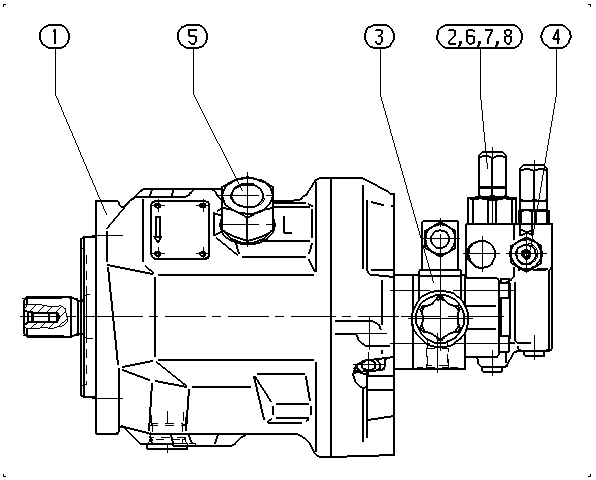

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998297 | BASE UNIT Assembly parts list →L | 1 | ||
| R902459027 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910998146 | VALVE PLATE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 | ||
| R910792772 | ADAPTER Assembly parts list →L | 1 | ||
| R910914728 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 1 | ||
| R909154478 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
