Unit · AXIAL-PISTON PUMP
AL A10V O100 DFR1/31L-VSC44K52 -SO974R910998555
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO100DFR1/31L-VSC44K52-SO974, material number R910998555. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52). Special version no. 974.
- Number
- R910998555
- Type code
- AL A10V O100 DFR1/31L-VSC44K52 -SO974
- Group
- A10VO 100
- Edition
- 06/2020

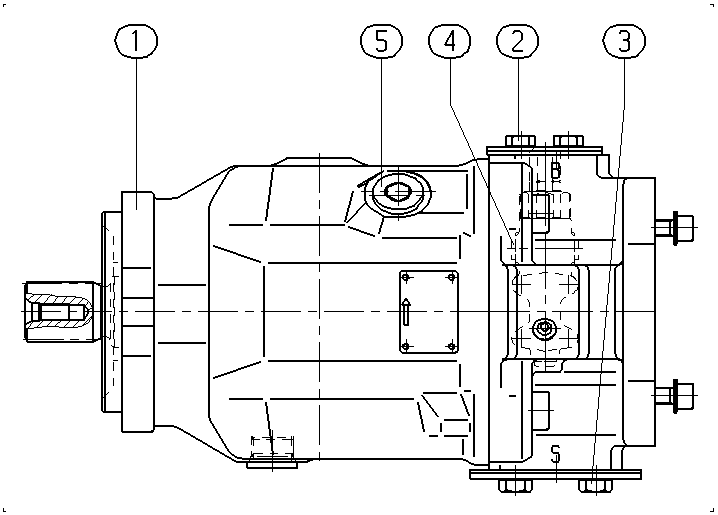

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998554 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400977 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
