Unit · CONTROL
V A4VSG 500 HDD /30RR910999222
Control Bosch Rexroth series A4VSO, type code VA4VSG500HDD/30R, material number R910999222. Nominal size: NG 500. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R910999222
- Type code
- V A4VSG 500 HDD /30R
- Group
- A4VSG 500
- Edition
- 07/2020

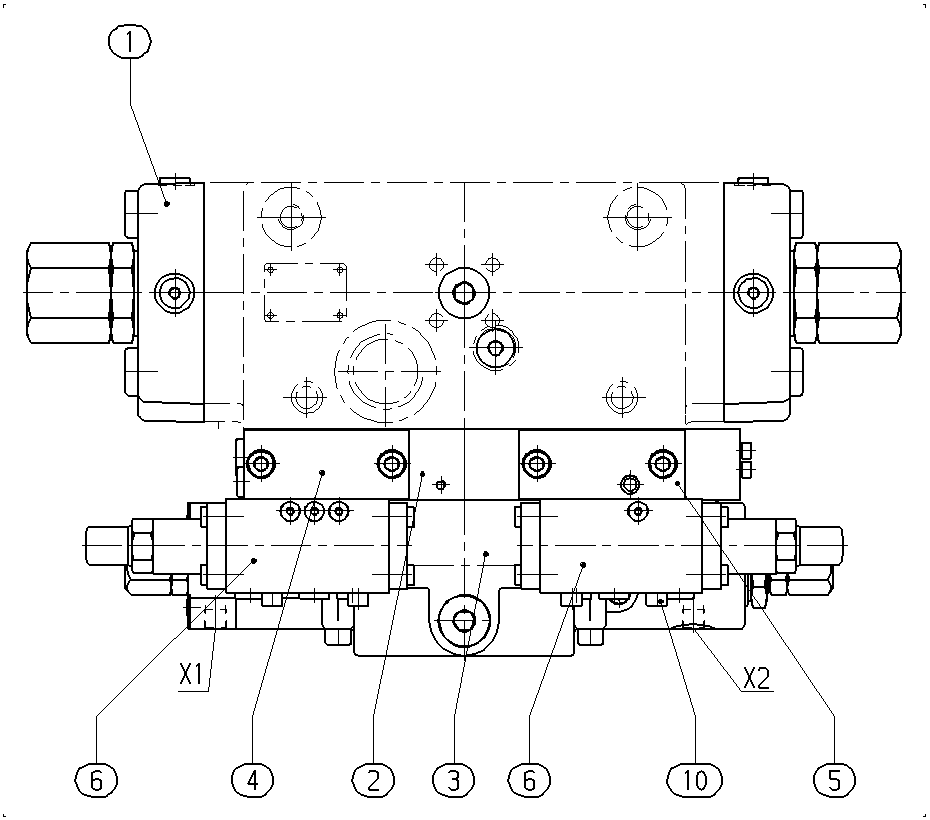

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910971763 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910992543 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910931841 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910916458 | PLATE Assembly parts list →L | 1 | ||
| R910916448 | PLATE Assembly parts list →L | 1 | ||
| R910928163 | CONTROL VALVE Assembly parts list →L | 2 | ||
| R910914670 | SOCKET HEAD CAP SCREW | 8 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 500 | 500 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| Series | Series 3, index 0 | 30 |
