Unit · AXIAL-PISTON PUMP
A A10V O140 DFEO/31R-PSD12K17 -SO551R910999297
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DFEO/31R-PSD12K17-SO551, material number R910999297. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: 152-4 (D) 1 3/4 in 13T 8/16DP (K17). Special version no. 551.
- Number
- R910999297
- Type code
- A A10V O140 DFEO/31R-PSD12K17 -SO551
- Group
- A10VO 140
- Edition
- 06/2020

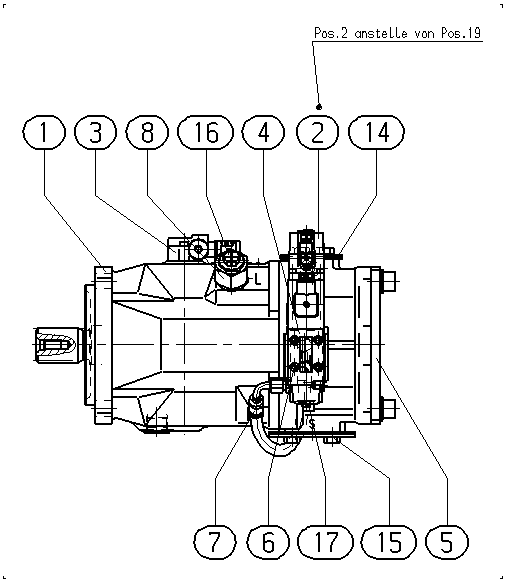

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910999269 | BASE UNIT Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902404047 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902469015 | SEALING COVER Assembly parts list →L | 1 | ||
| R910969085 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R910913483 | ADAPTER Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902602012 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 | ||
| 19 | R902452844 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 140 | 140 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | at bottom, on opposite side, metric fastening thread | 12 |
| Through drive | 152-4 (D) 1 3/4 in 13T 8/16DP | K17 |
