Unit · AXIAL-PISTON PUMP
AA10VO28FHD/31R-PSC12N00-SO652R910999702
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28FHD/31R-PSC12N00-SO652, material number R910999702. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 652.
- Number
- R910999702
- Type code
- AA10VO28FHD/31R-PSC12N00-SO652
- Group
- A10VO 28
- Edition
- 06/2020

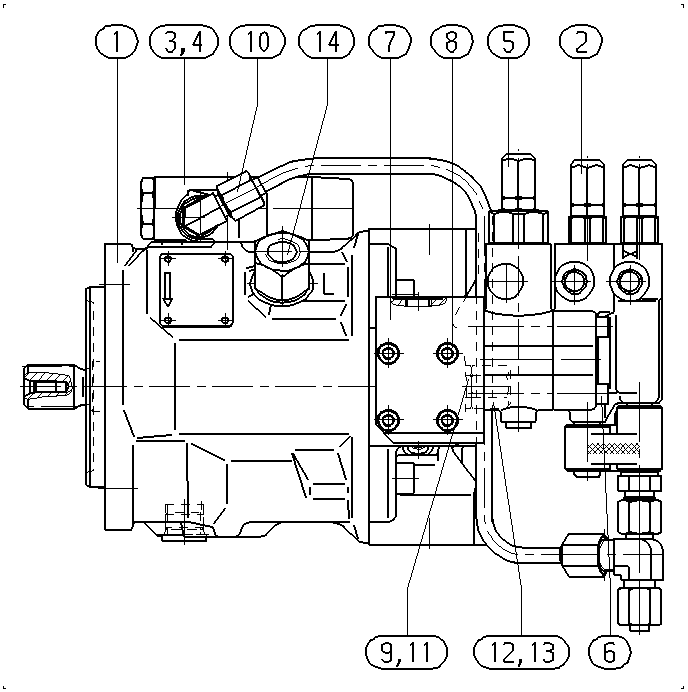

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910999665 | BASE UNIT Assembly parts list →L | 1 | ||
| R902532367 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533803 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 | ||
| R902455818 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R910929800 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910126446 | SOCKET HEAD CAP SCREW | 4 | ||
| R910917778 | SETSCREW | 1 | ||
| R910999621 | PIPING Assembly parts list →L | 1 | ||
| R910998240 | NUT | 1 | ||
| R910904041 | CAP NUT | 1 | ||
| R910514691 | O-RING | 2 | ||
| R910792829 | ADAPTER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
