Unit · AXIAL-PISTON PUMP

A A10V O 28 DFLR/31R-PSC11N00R910999872

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DFLR/31R-PSC11N00, material number R910999872. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00).

Number: R910999872
Type code: A A10V O 28 DFLR/31R-PSC11N00
Group: A10VO 28
Edition: 06/2020

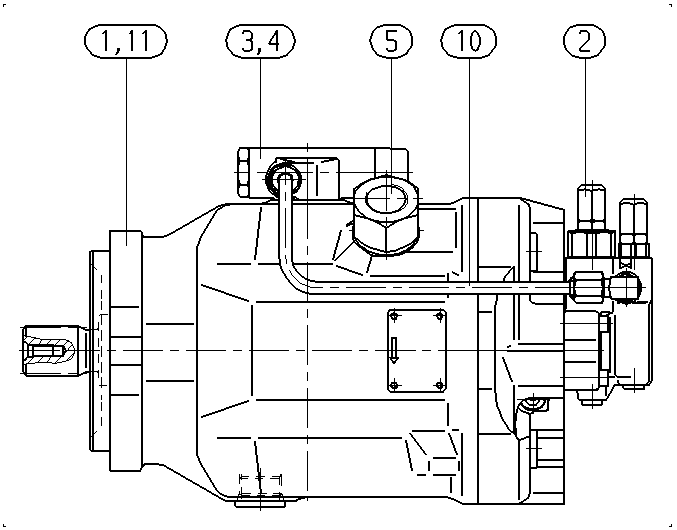

Pos.	Number	Name	Qty
	R910947252	BASE UNIT Assembly parts list →L	1
	R902450439	CONTROL VALVE Assembly parts list →L	1
	R902533217	CONTROL VALVE Assembly parts list →L	1
	R910932941	ADAPTER Assembly parts list →L	1
	R910792829	ADAPTER Assembly parts list →L	1
	R910967575	PIPING Assembly parts list →L	1
	R910984028	POWER DIAGRAM	1
70	R902421944	SHIPPING PROTECTION	1
71	R902421946	SHIPPING PROTECTION	1
72	R902602010	SEAL SCREW	1
73	R902602008	SEAL SCREW	1
75	R909830326	NAMEPLATE	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	28	28
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive	11
Through drive	Without through drive	N00

Parameters from the type code
