Unit · AXIAL-PISTON MOTOR

A A10F M 63 /52L-VKC10N000 -SO994R910999909

Axial piston motor Bosch Rexroth series A10FM, type code AA10FM63/52L-VKC10N000-SO994, material number R910999909. Nominal size: NG 63. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350 (A10F). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: flange ports A and B; laterally; same side Fastening thread metric according to ISO 6162 (10N00). Valves: without valve (0). Special version no. 994.

Number
R910999909
Type code
A A10F M 63 /52L-VKC10N000 -SO994
Group
A10FM 63
Edition
12/2020

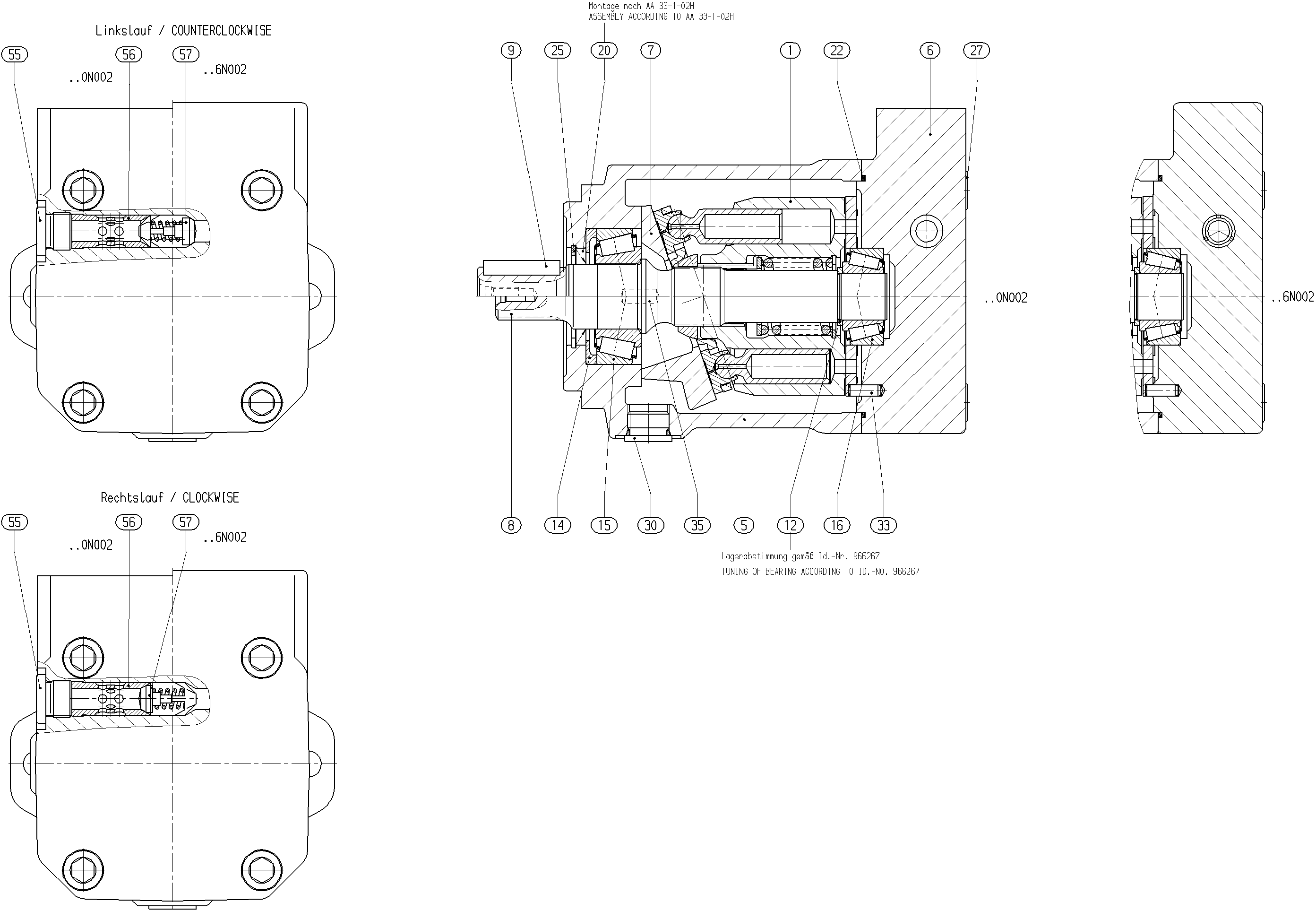

A A10F M 63 /52L-VKC10N000 -SO994 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910988068ROTARY GROUP Assembly parts list →L1
R910994055PUMP HOUSING1
R902407799CONNECTION PLATE1
R910988598CAM PLATE1
R902413415DRIVE SHAFT1
R902411855PARALLEL KEY1
R910966528ADJUSTMENT SHIM1
R910987843STOP RING1
R910720224TAPERED-ROLLER BEARING1
R910973501TAPERED-ROLLER BEARING1
R909831661SHAFT SEALING RINGD1
R913050498O-RINGD1
R910941918RETAINING RING1
R909831123SOCKET HEAD CAP SCREW4
R910967343SCREW PLUGD1
R902533908STRAIGHT PIN1
R910575038STRAIGHT PIN2
R909157040SCREW PLUG1
R910989610VALVE SLEEVE1
R910989620VALVE INSERT1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350A10F
Operating modeMotor, open and closed circuitM
Size (NG)6363
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft Counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE); 2 holeC
Working portFlange ports A and B; laterally; same side Fastening thread metric according to ISO 616210N00
ValvesWithout valve0
