Unit · AXIAL-PISTON PUMP
A8VO80LA1KH2/63R1-NSG05F000-SR992000251
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80LA1KH2/63R1-NSG05F000-S, material number R992000251. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Control devices: individual power controller with pilot pressure power override, with hydraulic power coupling and hydraulic lift limitation Positive control, external pilot pressure supply (LA1KH2). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Service line ports: SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) (5). Auxiliary pump: with integrated auxiliary pump Standard (F). Valves: without valves (only for the version without auxiliary pump, U) (0). Standard / special version: special version (S).
- Number
- R992000251
- Type code
- A8VO80LA1KH2/63R1-NSG05F000-S
- Group
- A8VO 80
- Edition
- 11/2019

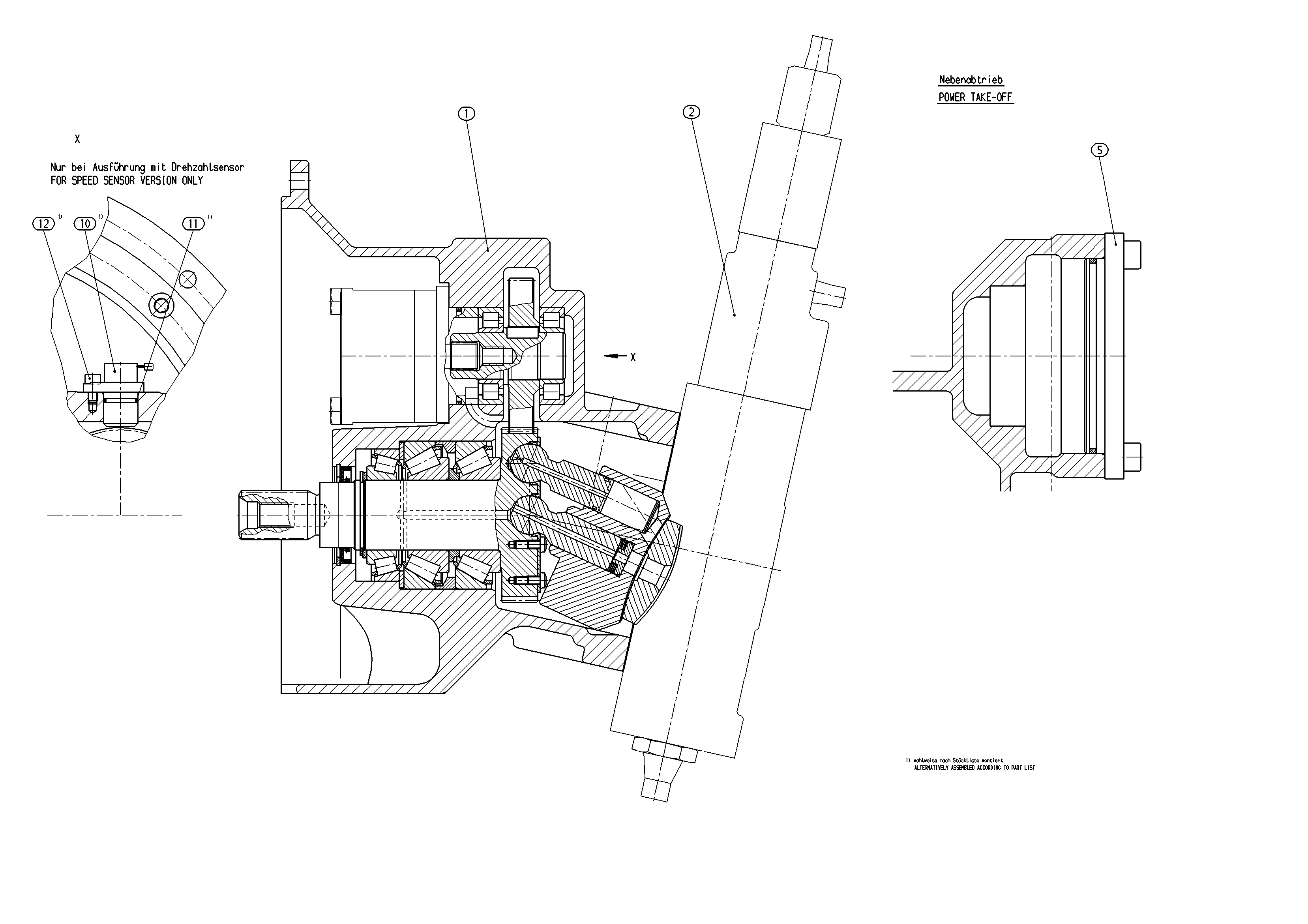

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902084024 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R902060403 | CONTROL Assembly parts list →L | 1 | ||
| R902021791 | COVER Assembly parts list →L | 1 | ||
| R902601647 | ROTATIONAL SPEED SENSOR | 1 | ||
| 11 | R909083737 | O-RING | 1 | |
| R909083018 | SOCKET HEAD CAP SCREW | 1 | ||
| 98 | R902166299 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Control devices | Individual power controller with pilot pressure power override, with hydraulic power coupling and hydraulic lift limitation Positive control, external pilot pressure supply | LA1KH2 |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Service line ports | SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) | 5 |
| Auxiliary pump | With integrated auxiliary pump Standard | F |
| Valves | Without valves (only for the version without auxiliary pump, U) | 0 |
| Standard / special version | Special version | S |
Other versions 11
- R902047063 A8VO80LA1KH2/63R1-NSG05F000-S
- R902049233 A8VO80LA1KH2/63R1-NSG05F000-S
- R902050814 A8VO80LA1KH2/63R1-NSG05F000-S
- R902050929 A8VO80LA1KH2/63R1-NSG05F000-S
- R902054831 A8VO80LA1KH2/63R1-NSG05F000-S
- R902057181 A8VO80LA1KH2/63R1-NSG05F000-S
- R902084022 A8VO80LA1KH2/63R1-NSG05F000-S
- R902096500 A8VO80LA1KH2/63R1-NSG05F000-S
- R902101854 A8VO80LA1KH2/63R1-NSG05F000-S
- R992001345 A8VO80LA1KH2/63R1-NSG05F000-S
- R992001597 A8VO80LA1KH2/63R1-NSG05F000-S
