Unit · AXIAL-PISTON MOTOR
AA6VM160HDXDX/63W-VSD52XHB-ESR992000390
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM160HDXDX/63W-VSD52XHB-ES, material number R992000390. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R992000390
- Type code
- AA6VM160HDXDX/63W-VSD52XHB-ES
- Group
- A6VM 160
- Edition
- 06/2020

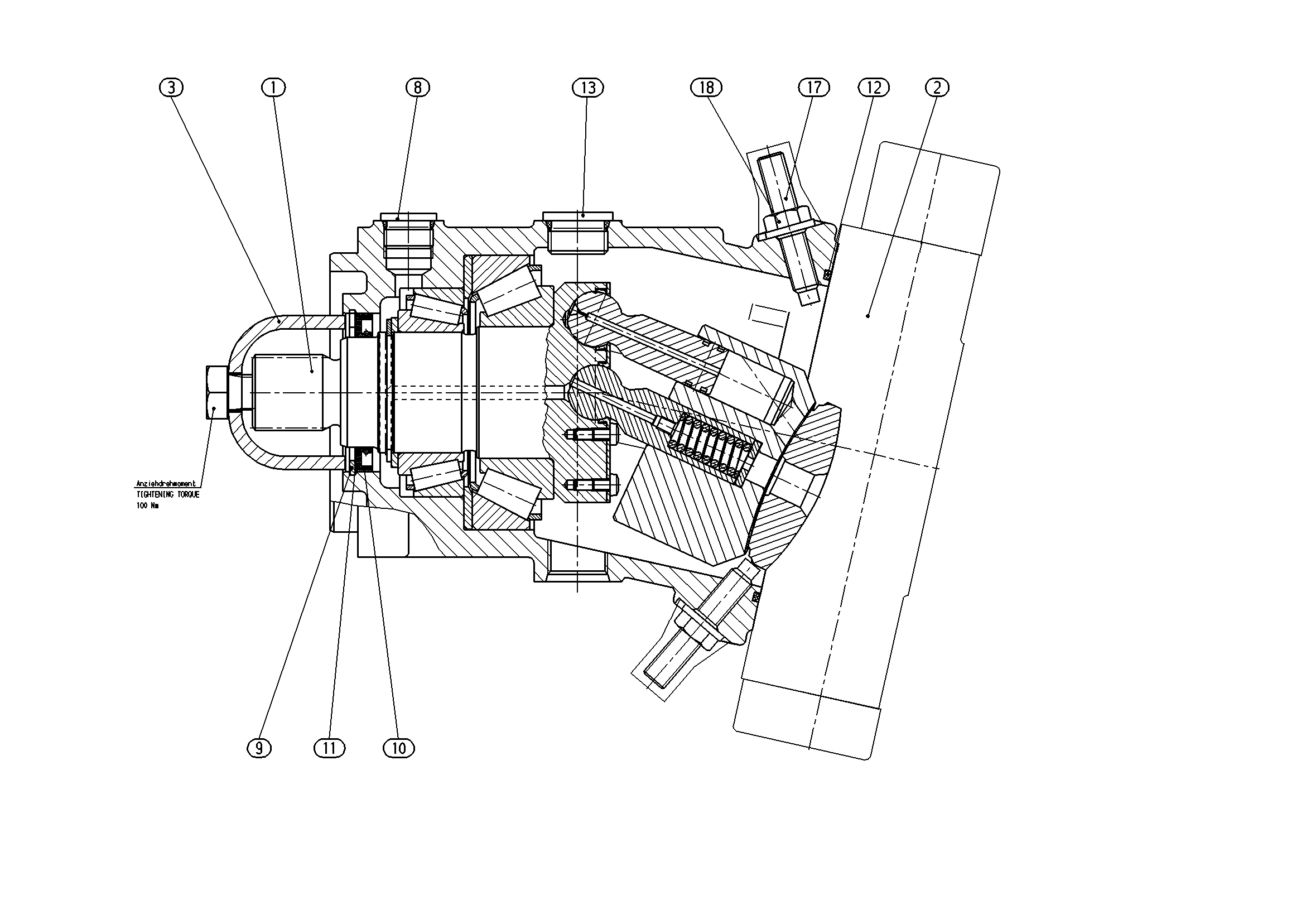

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909604152 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902065688 | CONTROL Assembly parts list →L | 1 | ||
| R902126591 | SHIPPING PROTECTION Assembly parts list →L | 1 | ||
| 5 | R909922156 | HOUSING | 1 | |
| R910967343 | SCREW PLUGD | 1 | ||
| 9 | R909083416 | RETAINING RING | 1 | |
| R909831663 | ROTARY SHAFT LIP SEALD | 1 | ||
| 11 | R909832084 | SUPPORTING DISC | 1 | |
| R902253127 | SEAL RINGD | 1 | ||
| 13 | R910967351 | SCREW PLUG | 1 | |
| R909446862 | SETSCREW Assembly parts list →L | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| 98 | R902002305 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
