Unit · AXIAL-PISTON PUMP
A10VG45EP4/10+A10VG45EZ2/10+A10VG45EZ2/R992000496
Axial piston pump Bosch Rexroth series A10VG, type code A10VG45EP4/10+A10VG45EZ2/10+A10VG45EZ2/, material number R992000496. Nominal size: NG 45. Operating mode: pump, closed circuit (G). Control device: proportional control, electric (EP4).
- Number
- R992000496
- Type code
- A10VG45EP4/10+A10VG45EZ2/10+A10VG45EZ2/
- Group
- A10VG 45
- Edition
- 06/2020

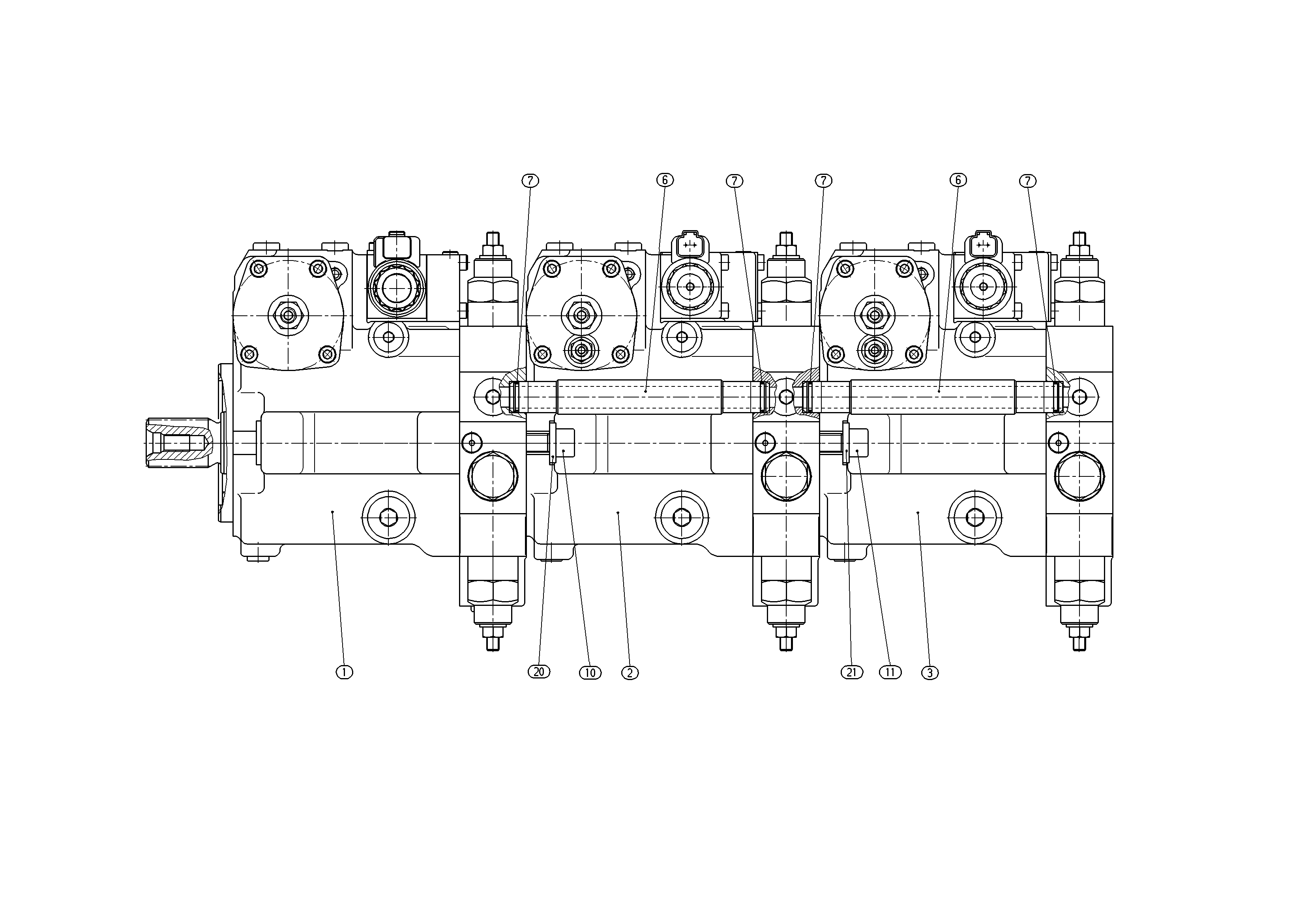

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902120440 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R902127443 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902110987 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902013115 | SOCKET PIPE | 2 | ||
| R909084939 | O-RING | 4 | ||
| R909083089 | SOCKET HEAD CAP SCREW | 2 | ||
| 11 | R909083089 | SOCKET HEAD CAP SCREW | 2 | |
| R909430409 | WASHER | 2 | ||
| 21 | R909430409 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 45 | 45 |
| Control device | Proportional control, electric | EP4 |
| Series | Series 1, index 0 | 10 |
