Unit · AXIAL-PISTON PUMP
AL A10V O 60 DFR1/52R-VSD73H00 -S1908R992000787
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO60DFR1/52R-VSD73H00-S1908, material number R992000787. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Special version no. 1908.
- Number
- R992000787
- Type code
- AL A10V O 60 DFR1/52R-VSD73H00 -S1908
- Group
- A10VO 60
- Edition
- 06/2020

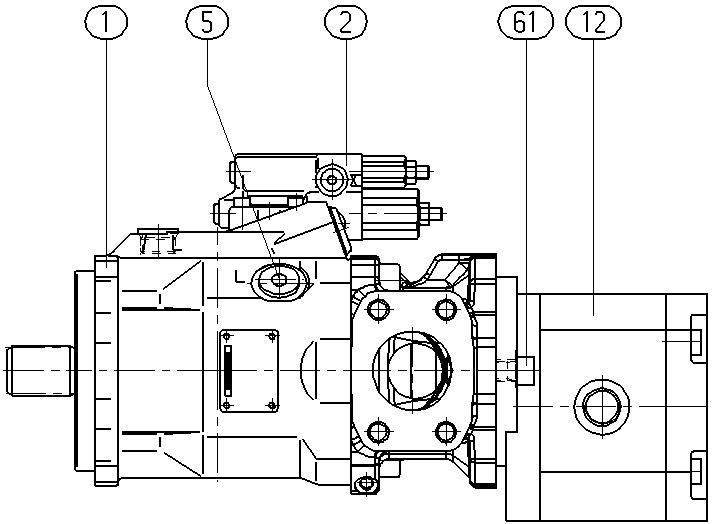

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902438589 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450440 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R902650813 | GEAR PUMP | 1 | ||
| R910126594 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
Other versions 8
- R902438671 A A10V O 60 DFR1/52R-VSD73H00 -S1908
- R902516923 A A10V O 60 DFR1/52R-VSD73H00 -S1908
- R902518125 A A10V O 60 DFR1/52R-VSD73H00 -S1908
- R902534021 A A10V O 60 DFR1/52R-VSD73H00 -S1908
- R902438562 AL A10V O 60 DFR1/52R-VSD73H00 -S1908
- R902516921 AL A10V O 60 DFR1/52R-VSD73H00 -S1908
- R902517829 AL A10V O 60 DFR1/52R-VSD73H00 -S1908
- R902534022 AL A10V O 60 DFR1/52R-VSD73H00 -S1908
