Unit · AXIAL-PISTON PUMP
AL A10V O 45 DFR1/52L-VSCXXH00 CNH-S1640R992000845
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45DFR1/52L-VSCXXH00CNH-S1640, material number R992000845. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Connector for solenoids: 14 With electric swivel angle sensor PAL Ratiometric Power supply U = 5V DC (H). Special version no. 1640.
- Number
- R992000845
- Type code
- AL A10V O 45 DFR1/52L-VSCXXH00 CNH-S1640
- Group
- A10VO 45
- Edition
- 06/2020

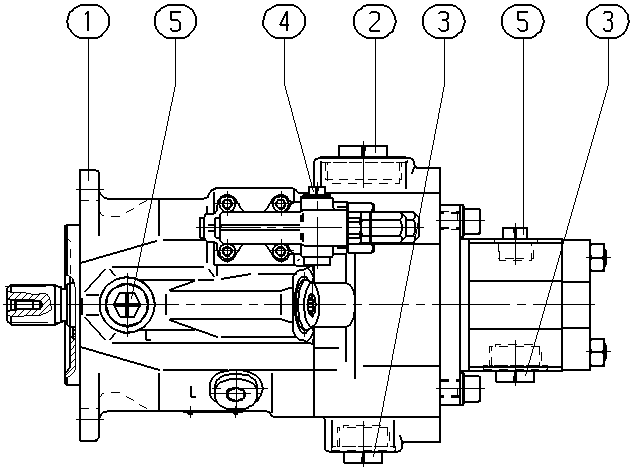

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902451551 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602207 | SEAL SCREW | 1 | ||
| R902602013 | SEAL SCREW | 2 | ||
| R902602007 | SEAL SCREW | 1 | ||
| R902602011 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Connector for solenoids | 14 With electric swivel angle sensor PAL Ratiometric Power supply U = 5V DC | H |
