Unit · POMPA OSIOWO-TŁOKOWA
AA4VG90EPXX1/32R-NZFXXFXX1DP-SR992001155
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG90EPXX1/32R-NZFXXFXX1DP-S, material number R992001155. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 2+4-hole (F). Boost pump: integrated boost pump with and without through drive (F). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Filtration boost circuit/external boost pressure supply: filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) (D). Connector for solenoids: DEUTSCH connector without suppressor diode molded, 2-pin (P). Standard/special version: special version (-S).
- Number
- R992001155
- Type code
- AA4VG90EPXX1/32R-NZFXXFXX1DP-S
- Group
- A4VG 90
- Edition
- 06/2020

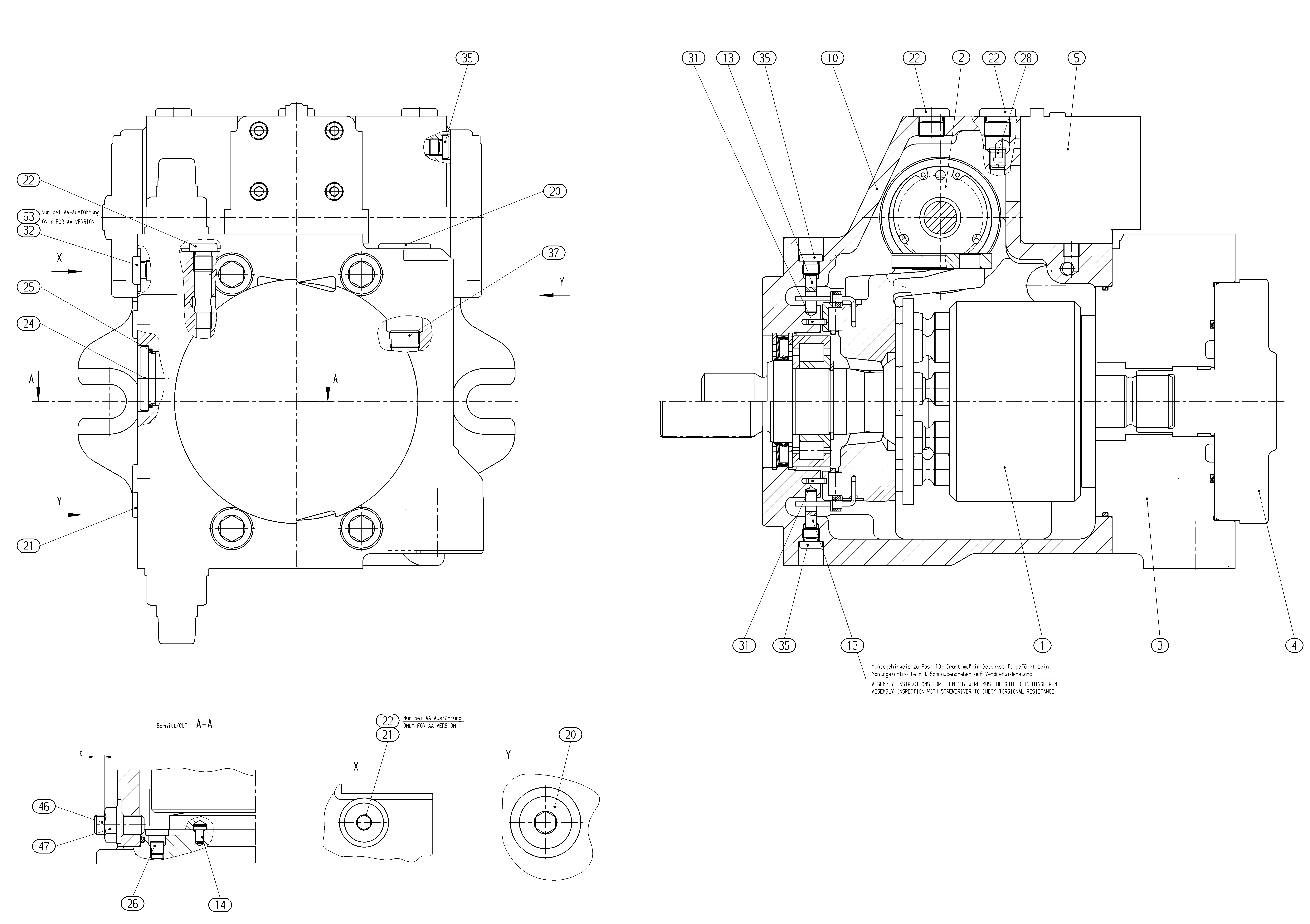

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902087354 | MECHANIZM NAPĘDOWY Assembly parts list →L | 1 | ||
| R902237847 | STEROWANIE Assembly parts list →L | 1 | ||
| R902095336 | PŁYTA POŁĄCZENIOWA Assembly parts list →L | 1 | ||
| R902104854 | POMPA ZĘBATA O ZAZĘBIENIU WEWNĘTRZNYM Assembly parts list →L | 1 | ||
| R902107487 | MODUŁ STEROWANIA Assembly parts list →L | 1 | ||
| R902010618 | KORPUS | 1 | ||
| 13 | R902114380 | SWORZEŃ OBROTU | 2 | |
| R909405732 | SZTYFT POZYCJONUJĄCY | 1 | ||
| 20 | R909154480 | KOREK GWINTOWANYD | 1 | |
| R909153338 | KOREK GWINTOWANYD | 1 | ||
| R909153371 | KOREK GWINTOWANYD | 3 | ||
| R909083228 | KOREK GWINTOWANY | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R913016373 | KOŁEK SPRĘŻYNUJĄCY | 2 | ||
| R909153364 | KOREK GWINTOWANYD | 4 | ||
| R909087913 | KOREK GWINTOWANY | 1 | ||
| R909154982 | SZTYFT GWINTOWANY | 1 | ||
| R909087405 | NAKRĘTKA USZCZELNIAJĄCAD | 1 | ||
| R909154478 | KOREK GWINTOWANY | 1 | ||
| 87 | R909831973 | WTYCZKA POŁĄCZENIOWA | 2 | |
| 98 | R902095526 | ZESTAW USZCZELNIEŃ | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 2+4-hole | F |
| Boost pump | Integrated boost pump with and without through drive | F |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Connector for solenoids | DEUTSCH connector without suppressor diode molded, 2-pin | P |
| Standard/special version | Special version | -S |
