Unit · AXIAL-PISTON PUMP
AL A10VNO 63 DFR1/52L-VRC11N00 -S1345R992001851
Axial piston pump Bosch Rexroth series A10VNO, type code ALA10VNO63DFR1/52L-VRC11N00-S1345, material number R992001851. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: according to ISO 6162 rear not for through drive (11). Through drive: without through drive (N00). Special version no. 1345.
- Number
- R992001851
- Type code
- AL A10VNO 63 DFR1/52L-VRC11N00 -S1345
- Group
- A10VNO 63
- Edition
- 06/2020

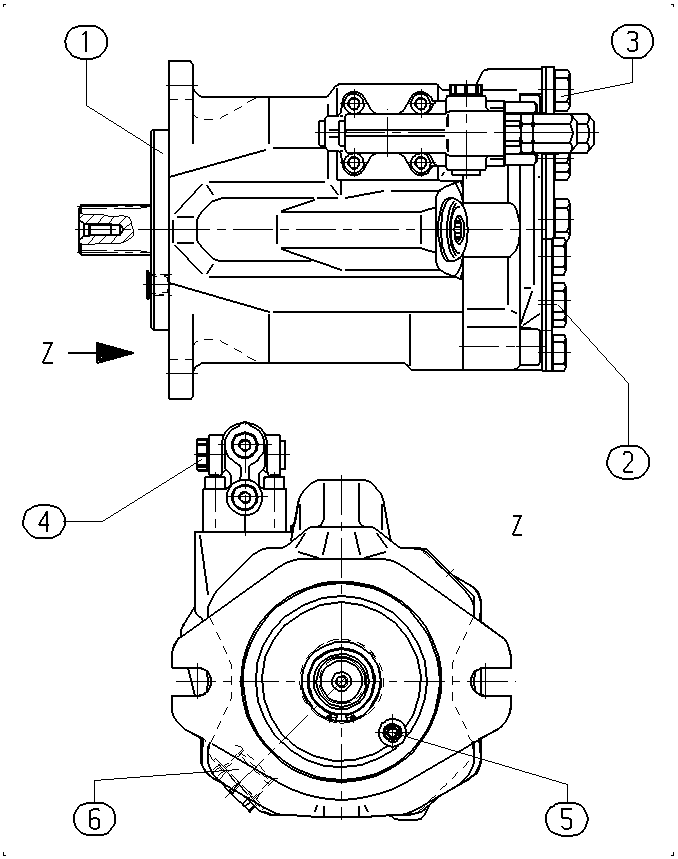

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902417455 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400586 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902602007 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "S" however for torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | according to ISO 6162 rear not for through drive | 11 |
| Through drive | Without through drive | N00 |
