Assembly

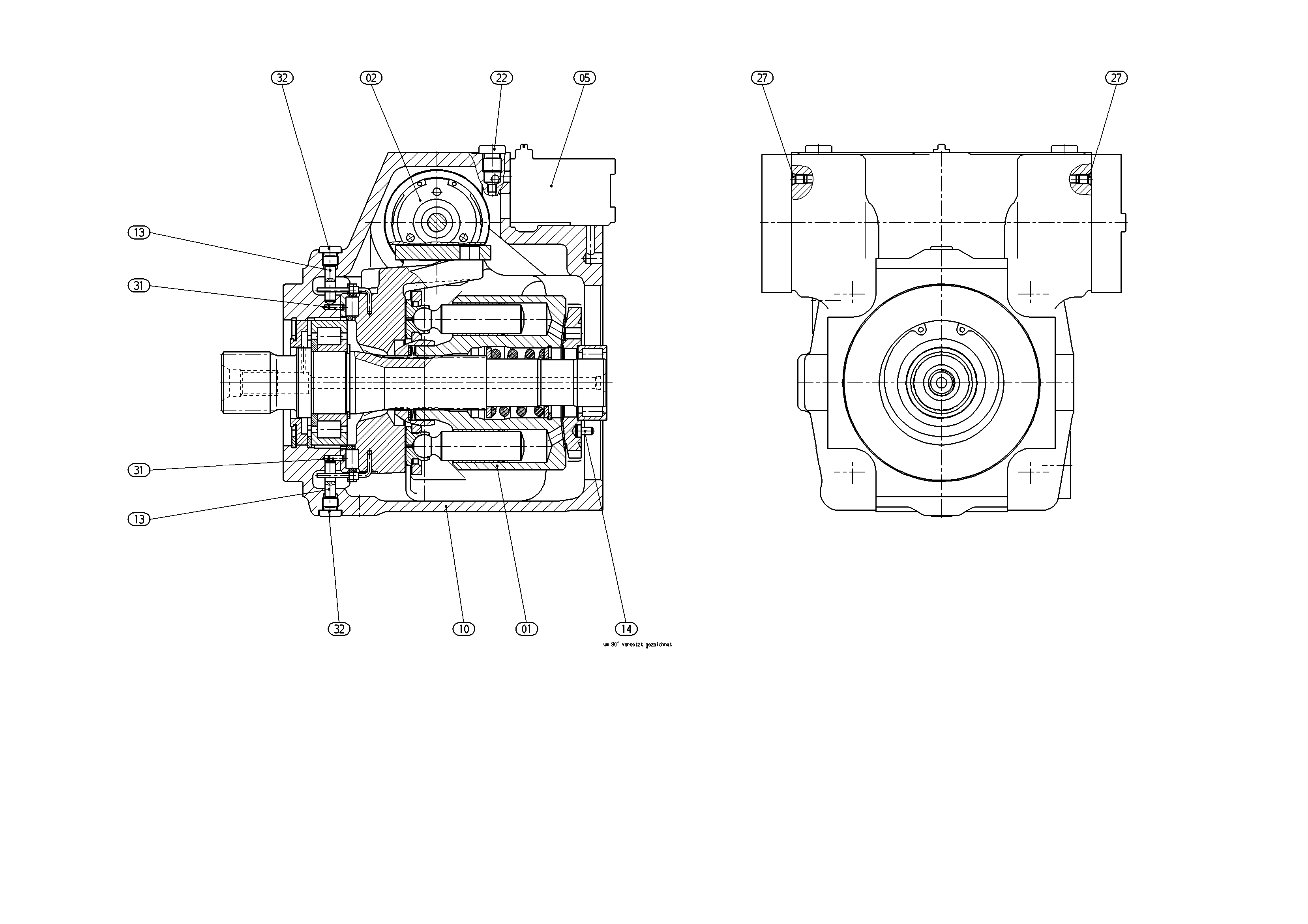

AXIAL-PISTON PUMPR902001394
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902001412 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R902019518 | CONTROL Assembly parts list →L | 1 | |
| 5 | R902046036 | CONTROL MODULE Assembly parts list →L | 1 | |
| R902001405 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 |
