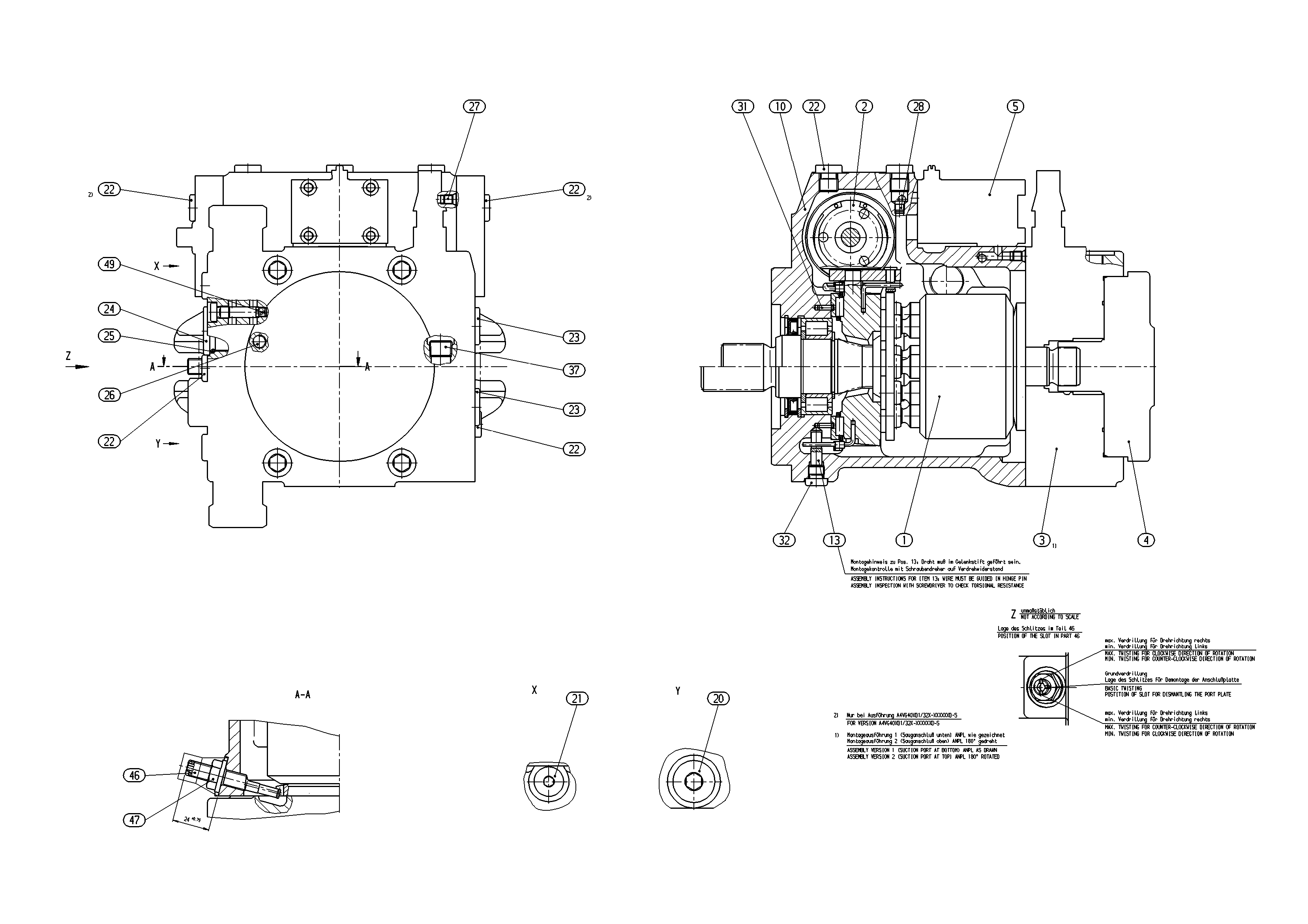

Assembly
AXIAL-PISTON PUMPR902006772
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909607687 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902004678 | CONTROL Assembly parts list →L | 1 | ||
| R909609930 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606688 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902197472 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R902007239 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 7 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831347 | PLUG | 1 | ||
| 98 | R902166443 | SEAL KIT | 1 |
