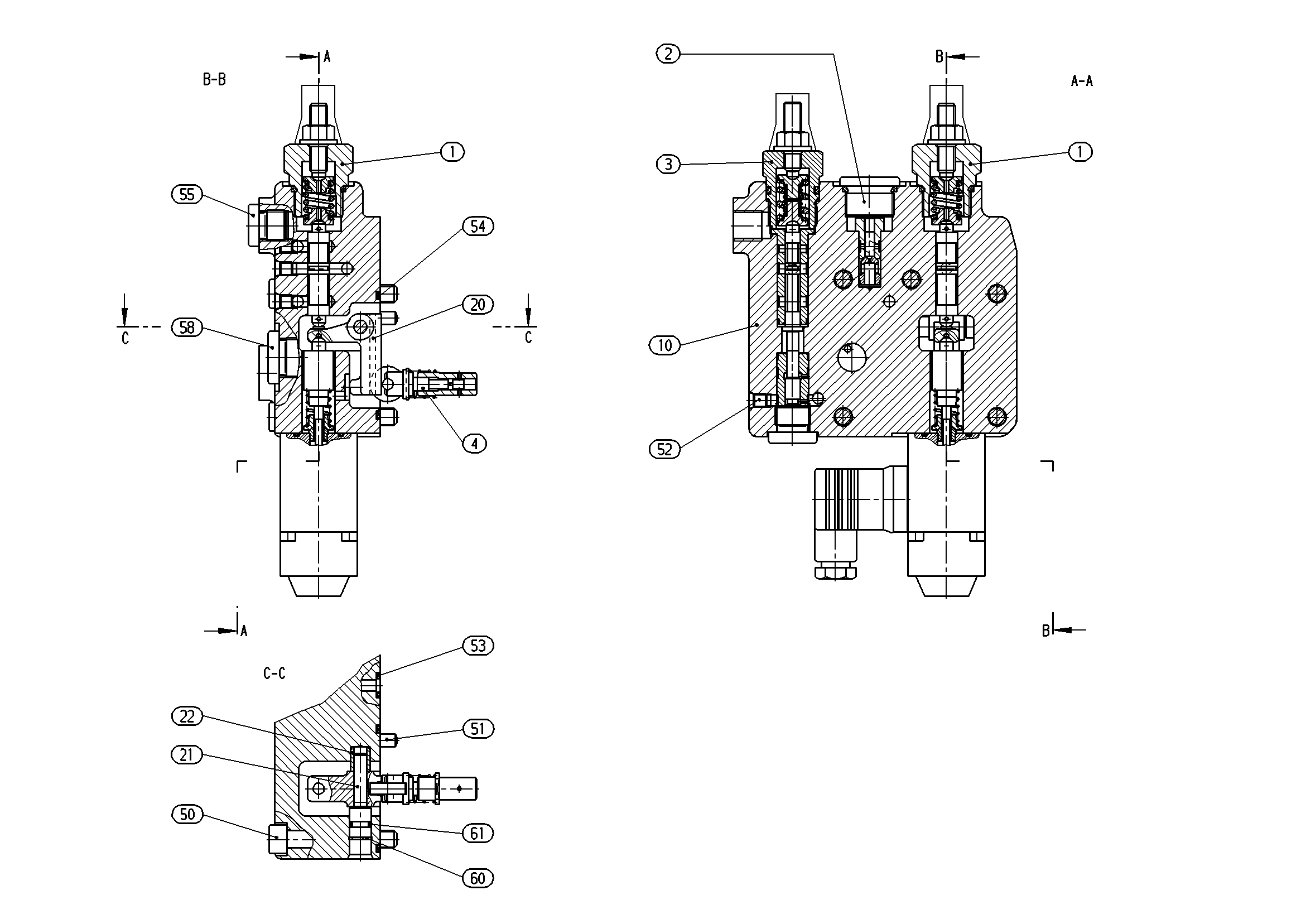

Assembly
REGULATORR902025140
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902025141 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| 2 | R909438949 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| 3 | R902015272 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R902025144 | MEASURING PISTON Assembly parts list →L | 1 | ||
| R902042661 | CONTROL HOUSING | 1 | ||
| R909445555 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 9 | ||
| R902602890 | R-RING | 3 | ||
| R902600656 | O-RING | 1 | ||
| 55 | R909151979 | SCREW PLUG | 1 | |
| R909153815 | SCREW PLUG | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R909083724 | O-RING | 1 | ||
| 98 | R902002478 | SEAL KIT | 1 |
