Assembly

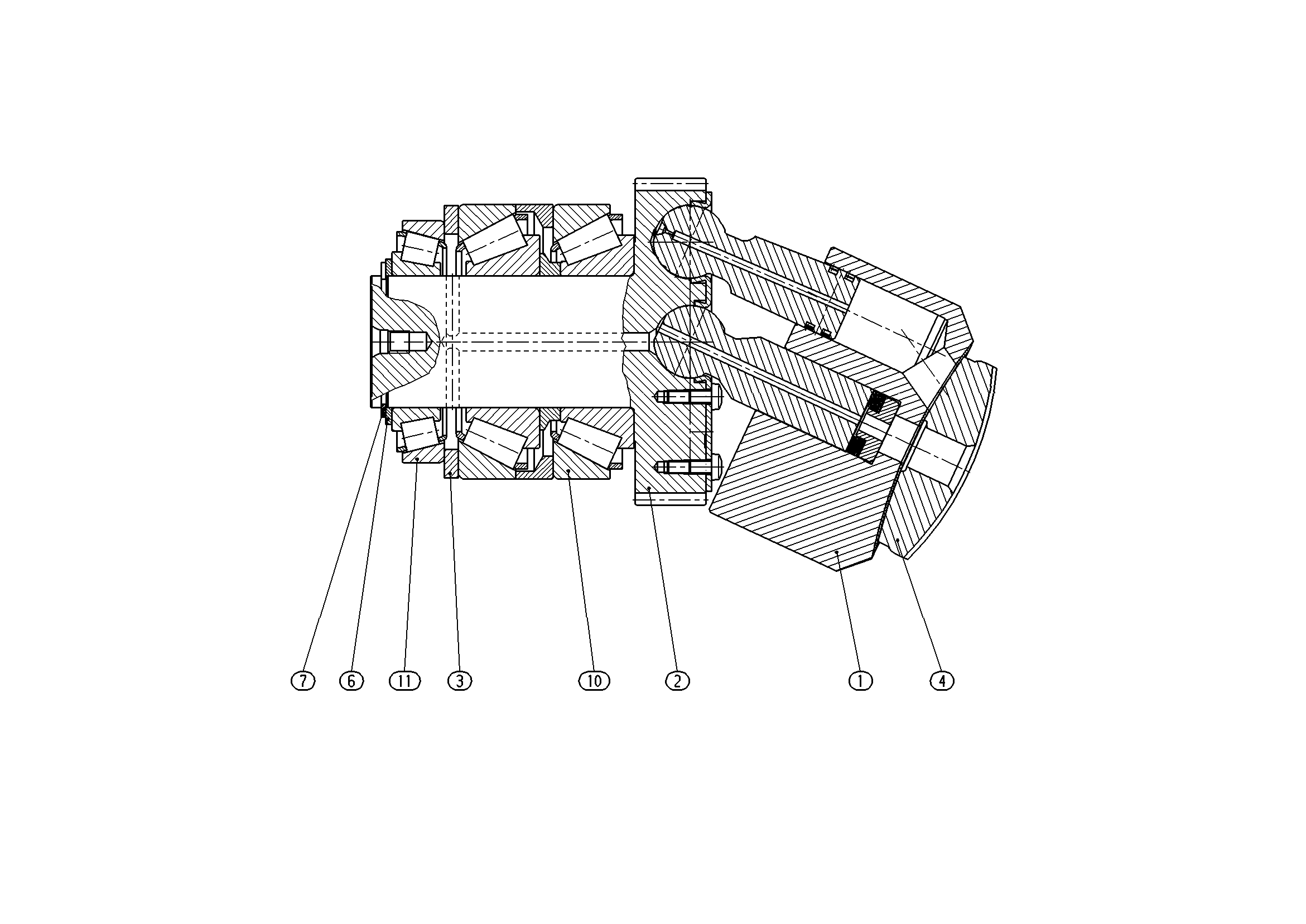

ROTARY GROUPR902031954
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902031947 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R902031620 | DRIVE SHAFT | 1 | |
| 3 | R909651590 | SHIM RING | 1 | |
| 3 | R909651589 | SHIM RING | 1 | |
| 3 | R909651588 | SHIM RING | 1 | |
| 3 | R909651587 | SHIM RING | 1 | |
| 3 | R909651586 | SHIM RING | 1 | |
| R902031937 | CONTROL LENS, LEFT-HAND ROTATION | 1 | ||
| R902031630 | SUPPORTING DISC | 1 | ||
| R902031631 | SUPPORTING DISC | 1 | ||
| R902031632 | SUPPORTING DISC | 1 | ||
| R902031633 | SUPPORTING DISC | 1 | ||
| R902031634 | SUPPORTING DISC | 1 | ||
| R902031635 | SUPPORTING DISC | 1 | ||
| R902031636 | SUPPORTING DISC | 1 | ||
| R902031637 | SUPPORTING DISC | 1 | ||
| R909083367 | RETAINING RING | 1 | ||
| 10 | R909156512 | TAPERED-ROLLER BEARING UNIT | 1 | |
| 11 | R909151103 | TAPERED-ROLLER BEARING | 1 |
