Assembly

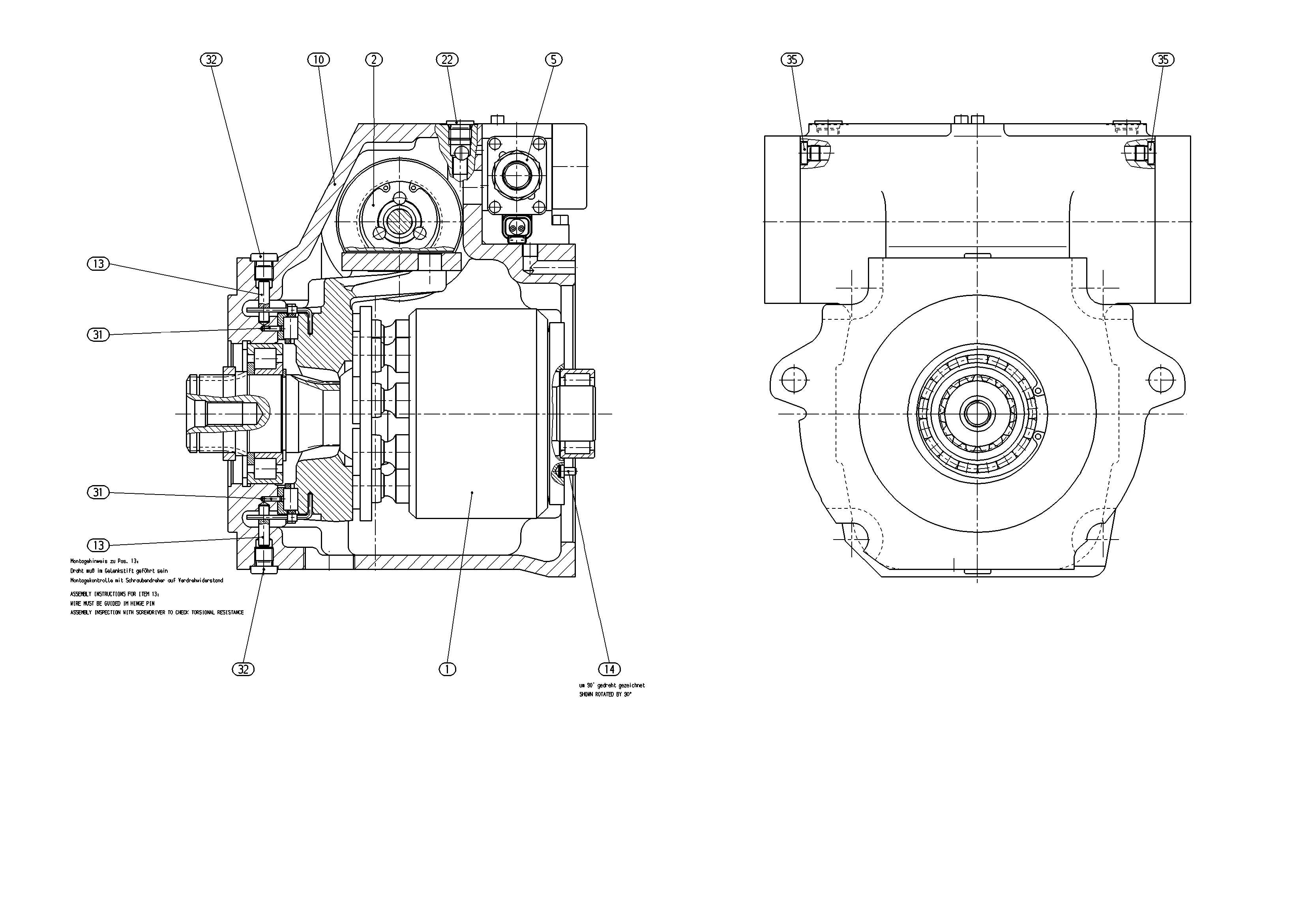

AXIAL-PISTON PUMPR902047591
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902001261 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R902025111 | CONTROL Assembly parts list →L | 1 | |
| R902047593 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902071170 | HOUSING | 1 | ||
| R902118633 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R913016374 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 |
