Assembly

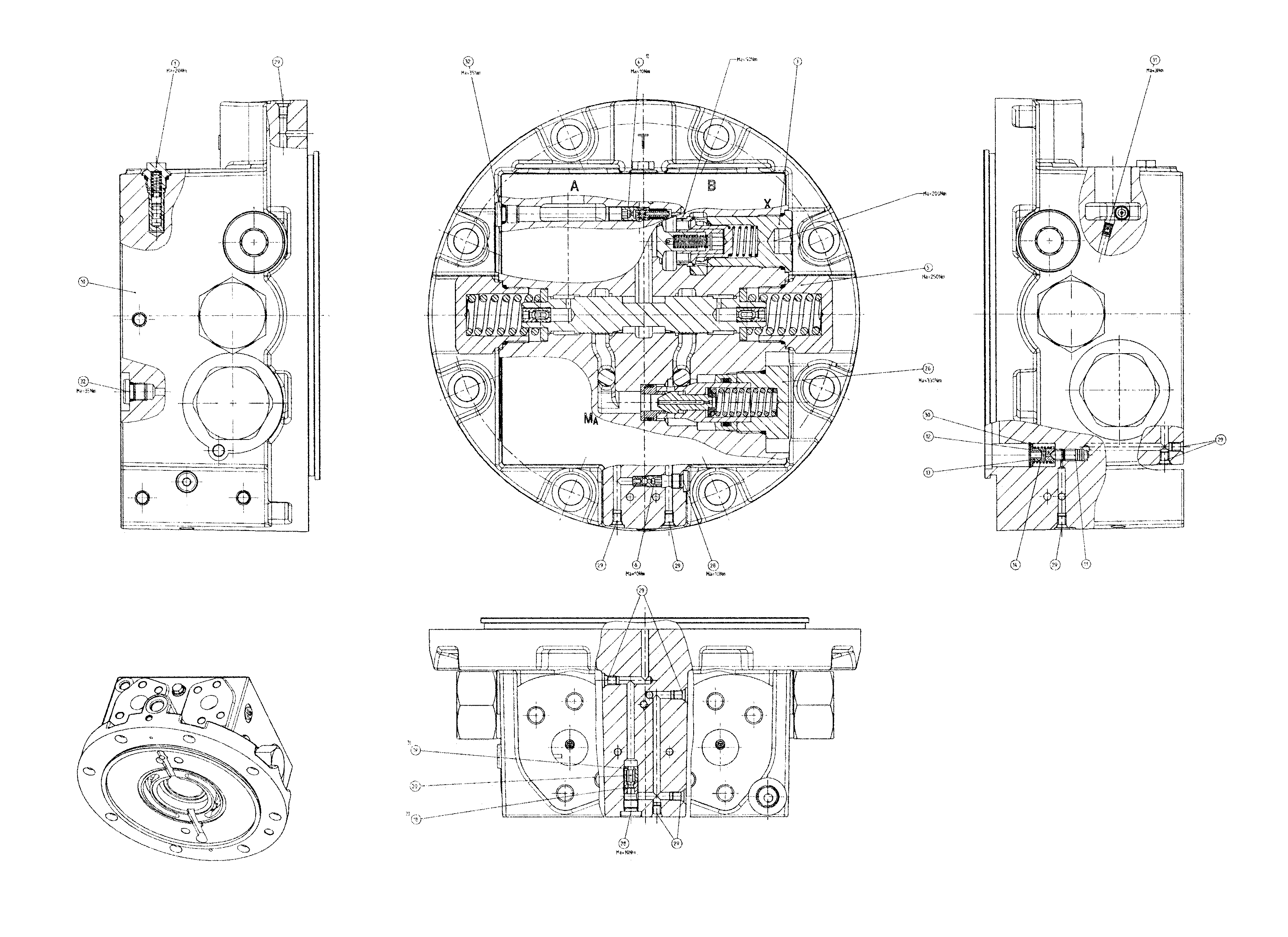

CONNECTION PLATER902071277
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902078219 | BRAKE RELEASE VALVE Assembly parts list →L | 1 | ||
| 3 | R902038537 | VALVE Assembly parts list →L | 2 | |
| R902010799 | VALVE Assembly parts list →L | 1 | ||
| 5 | R902078134 | BRAKE VALVE Assembly parts list →L | 1 | |
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902071278 | CONNECTION PLATE | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909426138 | SPRING DISK | 1 | ||
| 13 | R909426136 | SPRING DISK | 1 | |
| R909432802 | COMPRESSION SPRING | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909417118 | THROTTLE PIN | 1 | ||
| R902601346 | PRESSURE RELIEF VALVE | 2 | ||
| R909156649 | SCREW PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909156494 | NOZZLE | 2 | ||
| R909831743 | SCREW PLUG | 3 |
