Assembly

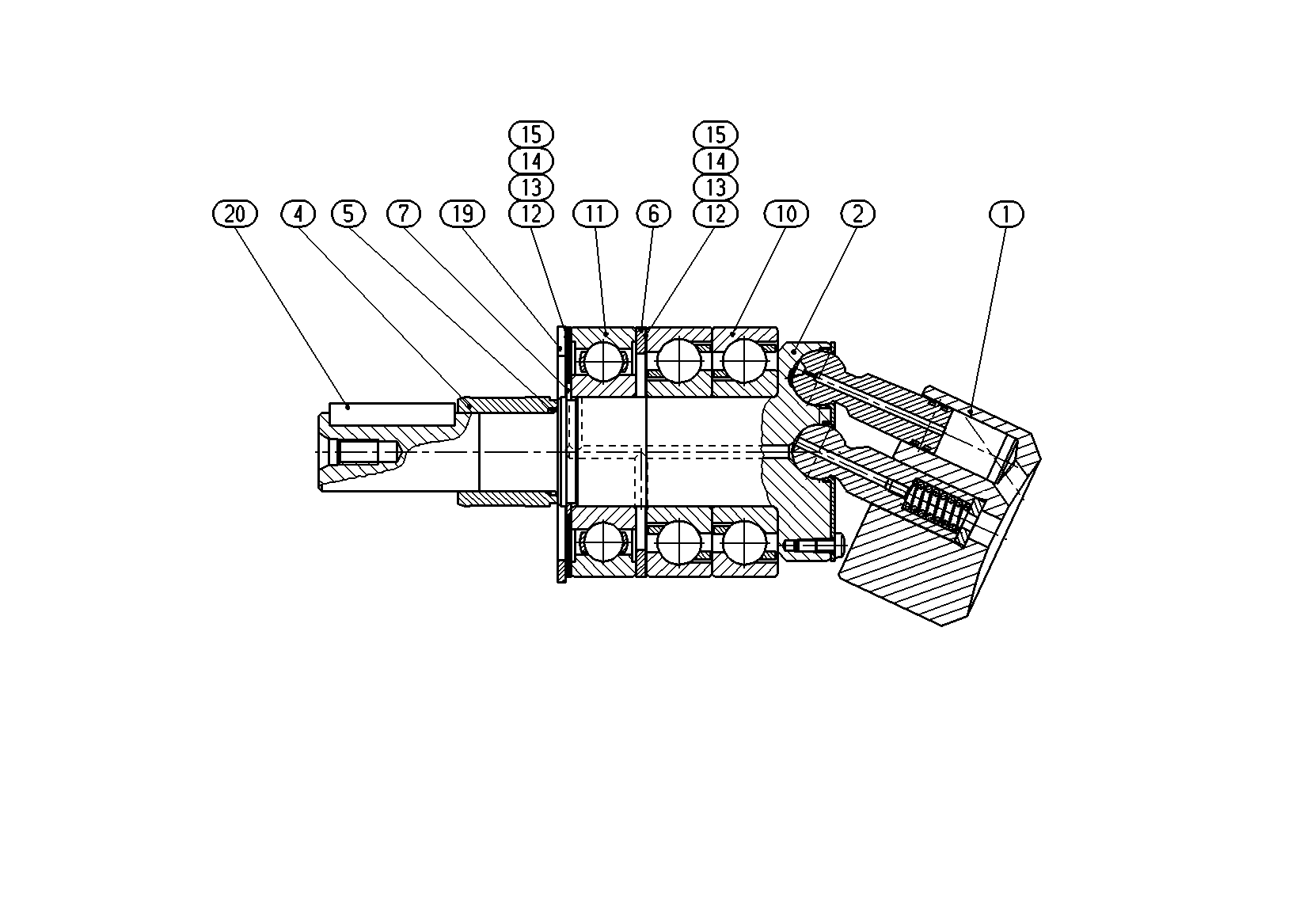

ROTARY GROUPR902078669
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902063930 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902078666 | DRIVE SHAFT | 1 | ||
| R909444056 | BUSHING | 1 | ||
| R909087649 | O-RING | 1 | ||
| R909445593 | SUPPORTING DISC | 1 | ||
| R913031838 | RETAINING RING | 1 | ||
| R913032711 | ANG. CONTACT BALL BEARING | 2 | ||
| 11 | R913023206 | DEEP-GROOVE BALL BEARING | 1 | |
| R909084587 | SHIM RING | 2 | ||
| 13 | R909084586 | SHIM RING | 1 | |
| R909083430 | SHIM RING | 1 | ||
| R909085952 | SHIM RING | 1 | ||
| R909831085 | RETAINING RING | 1 | ||
| R909083983 | PARALLEL KEY | 1 |
