Assembly

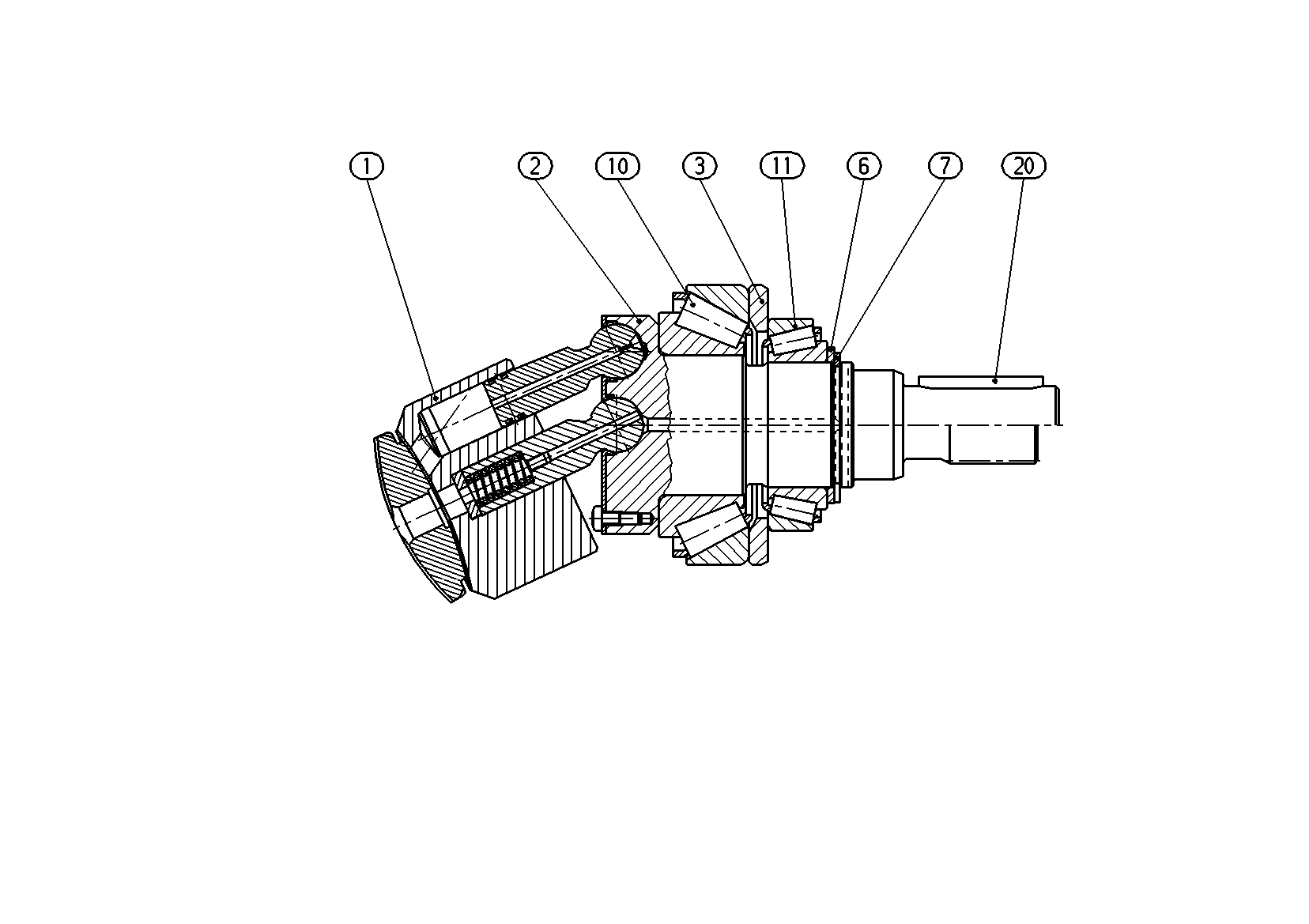

ROTARY GROUPR902078947
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909603996 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902078946 | DRIVE SHAFT | 1 | ||
| R909651508 | SHIM RING | 1 | ||
| R909921805 | SUPPORTING DISC | 1 | ||
| R909921806 | SUPPORTING DISC | 1 | ||
| R909921807 | SUPPORTING DISC | 1 | ||
| R909921808 | SUPPORTING DISC | 1 | ||
| R909921809 | SUPPORTING DISC | 1 | ||
| R909921810 | SUPPORTING DISC | 1 | ||
| R909921811 | SUPPORTING DISC | 1 | ||
| R909921812 | SUPPORTING DISC | 1 | ||
| R909083362 | RETAINING RING | 1 | ||
| R909154685 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154686 | TAPERED-ROLLER BEARING | 1 |
