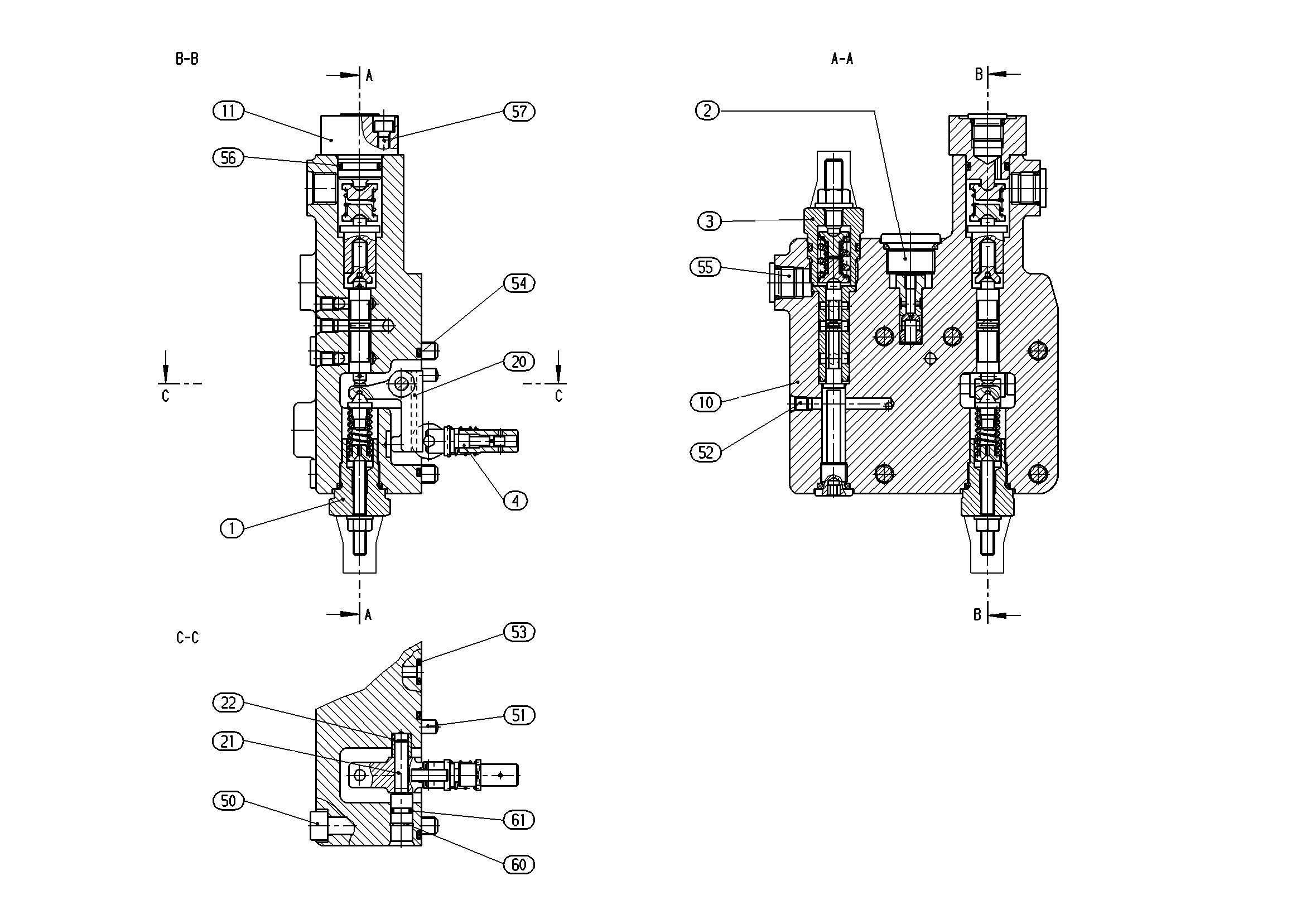

Assembly
REGULATORR902097917
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909447096 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909438949 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902032579 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909447093 | MEASURING PISTON Assembly parts list →L | 1 | ||
| R902097918 | CONTROL HOUSING | 1 | ||
| R902030362 | COVER | 1 | ||
| R909445555 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R902602890 | R-RING | 3 | ||
| R902600656 | O-RING | 1 | ||
| R909153371 | SCREW PLUG | 3 | ||
| R909086435 | O-RING | 1 | ||
| R909083010 | SOCKET HEAD CAP SCREW | 4 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 |
