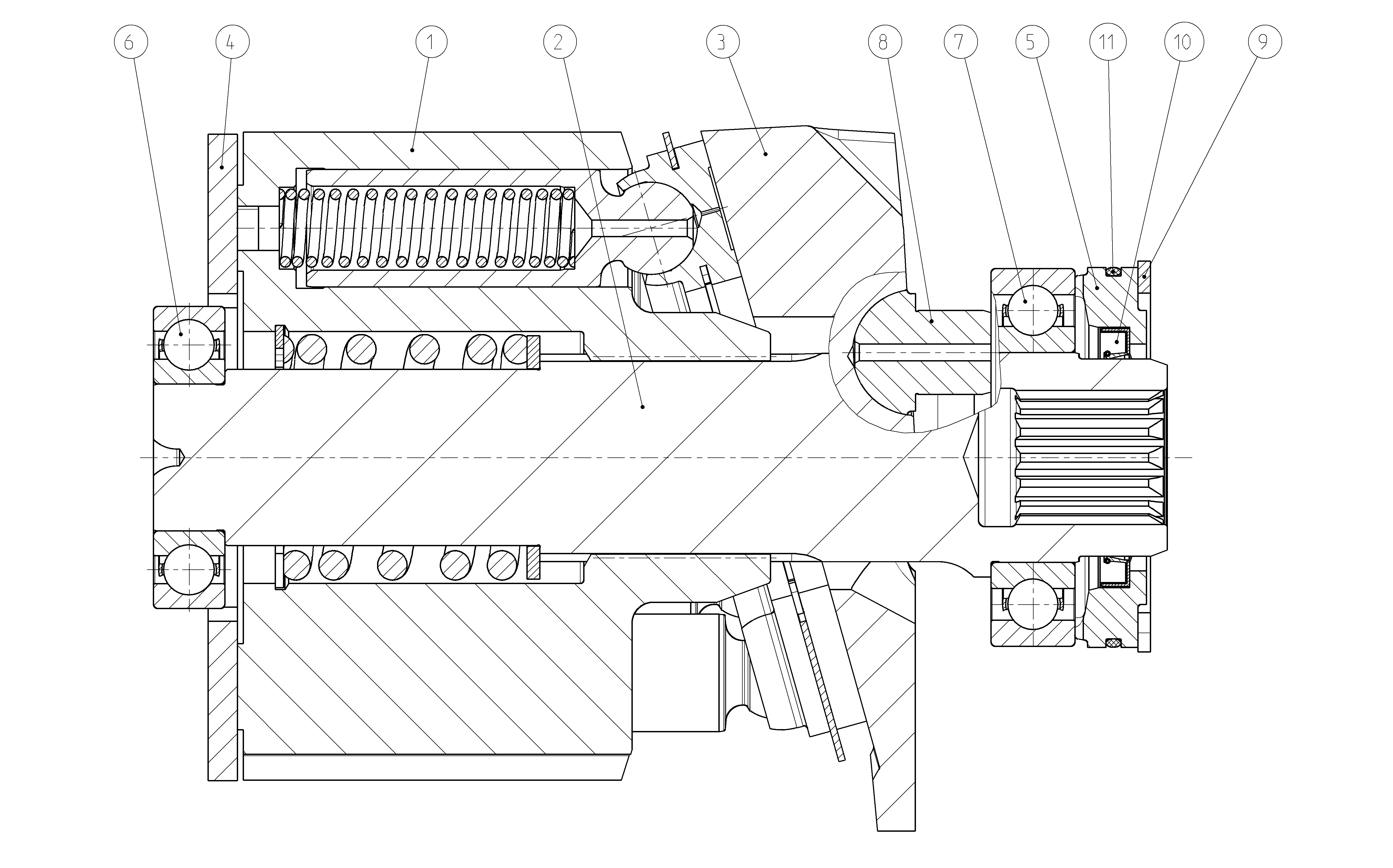

Assembly
ROTARY GROUPR902202939
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902202933 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902157341 | DRIVE SHAFT | 1 | ||
| R902192379 | SWIVEL BLOCK | 1 | ||
| R902157342 | DISTRIBUTOR PLATE | 1 | ||
| R902157328 | LOCKING RING | 1 | ||
| R913010075 | DEEP-GROOVE BALL BEARING | 1 | ||
| R913010073 | DEEP-GROOVE BALL BEARING | 1 | ||
| R902192629 | SWIVEL BALL | 2 | ||
| R909083416 | RETAINING RING | 1 | ||
| R909831232 | SHAFT SEALING RING | 1 | ||
| R909086495 | O-RING | 1 |
