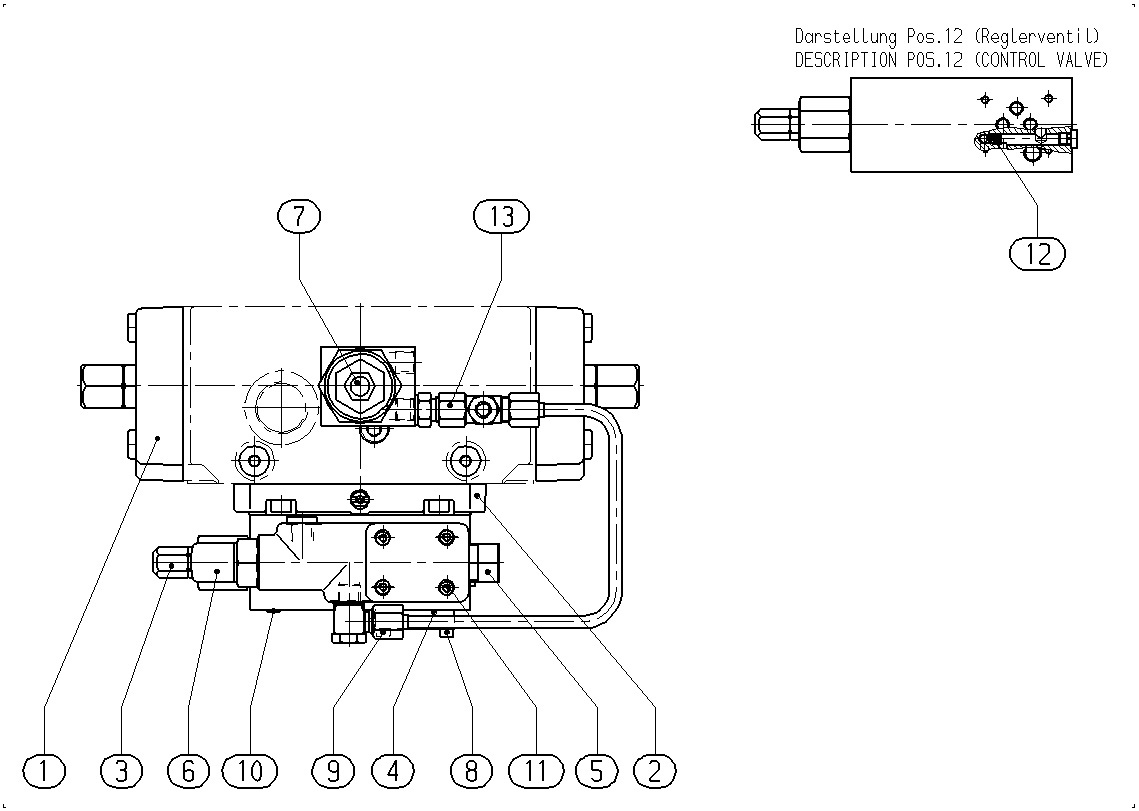

Assembly
REGULATORR902424928
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998066 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910977194 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902402988 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910935192 | CHANGE-OVER PLATE Assembly parts list →L | 1 | ||
| R910983671 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910983432 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910906113 | PILOT VALVE Assembly parts list →L | 1 | ||
| R910913350 | SOCKET HEAD CAP SCREW | 2 | ||
| R910913349 | SOCKET HEAD CAP SCREW | 2 | ||
| R910903670 | SOCKET HEAD CAP SCREW | 2 | ||
| R910913350 | SOCKET HEAD CAP SCREW | 4 | ||
| R910836761 | NOZZLE | 1 | ||
| R910998635 | PIPING Assembly parts list →L | 1 |
