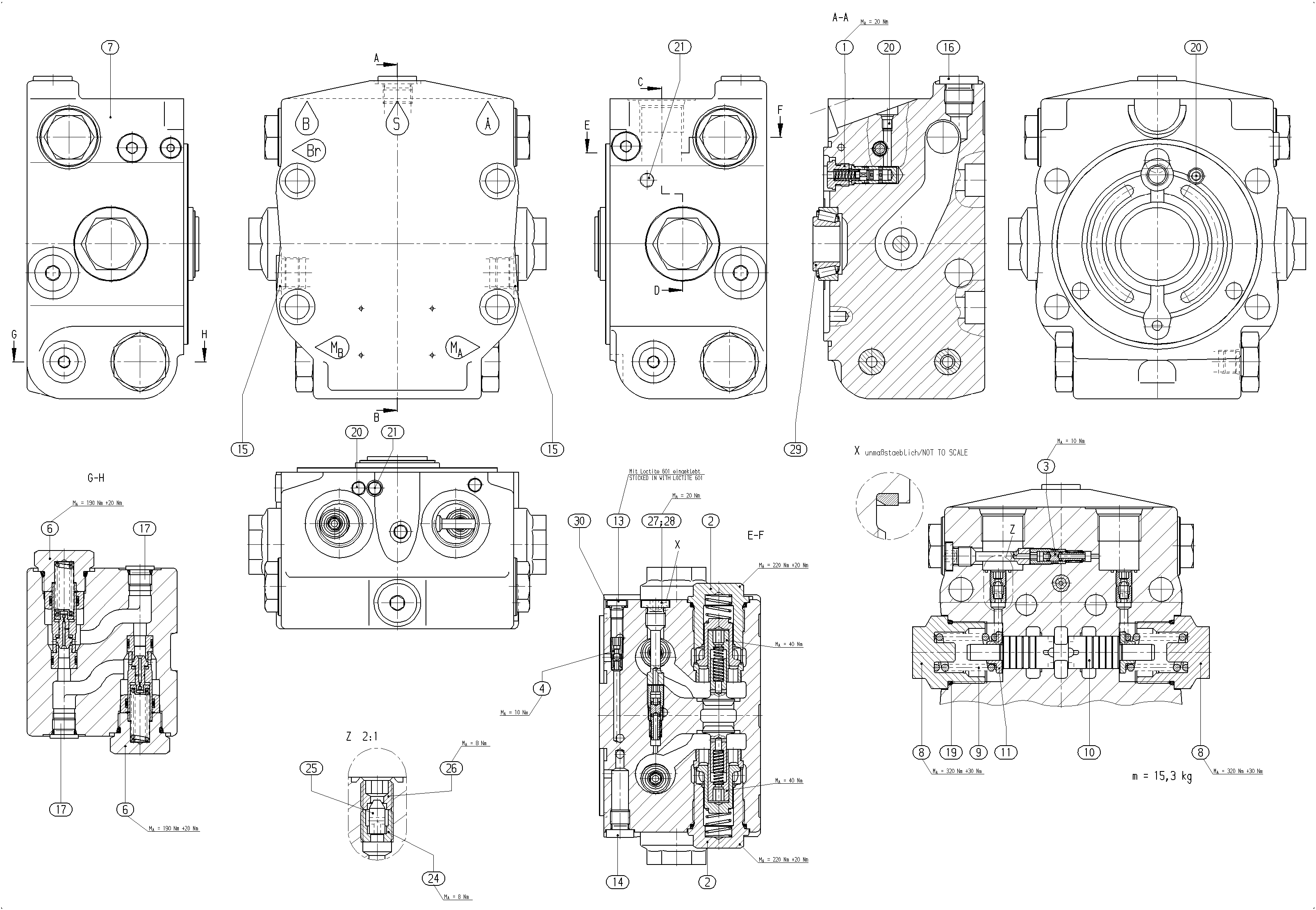

Assembly
CONNECTION PLATER902426233
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400712 | BRAKE RELEASE VALVE Assembly parts list →L | 1 | ||
| R902038539 | CHECK VALVE | 2 | ||
| R902407296 | VALVE | 1 | ||
| R902423170 | SHUTTLE VALVE | 1 | ||
| R910984812 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902425595 | CONNECTION PLATE | 1 | ||
| R902404150 | SCREW PLUG | 2 | ||
| R910976270 | COMPRESSION SPRING | 2 | ||
| R902400534 | PISTON | 1 | ||
| R902025910 | SPRING DISK | 2 | ||
| R910933812 | SCREW PLUG | 1 | ||
| R902650659 | SCREW PLUG | 1 | ||
| R910901969 | SCREW PLUG | 2 | ||
| R902650697 | SCREW PLUG | 1 | ||
| R902650661 | SCREW PLUG | 2 | ||
| R909831230 | O-RING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910978752 | BREAK-OFF PLUG | 2 | ||
| R909400263 | THROTTLE SCREW | 2 | ||
| R909425868 | THROTTLE PIN | 2 | ||
| R909400264 | THROTTLE SCREW | 2 | ||
| R902431751 | SCREW PLUG | 1 | ||
| R902601634 | SEAL RING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910642827 | BONDED SEAL RING | 1 |
