Assembly

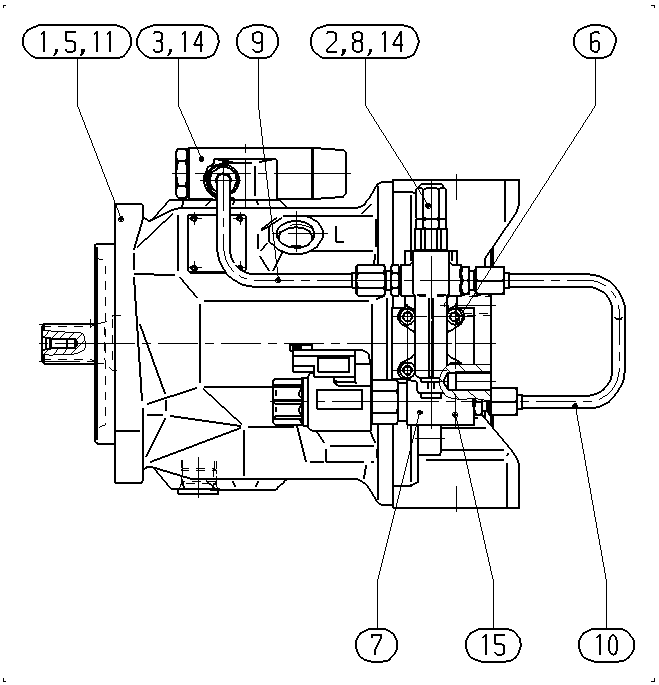

AXIAL-PISTON PUMPR902449981
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902428126 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533362 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910918062 | SIDE MARKER RING | 1 | ||
| R910387053 | SOCKET HEAD CAP SCREW | 4 | ||
| R902436776 | VALVE PLATE Assembly parts list →L | 1 | ||
| R902434482 | SEAL | 1 | ||
| R902438664 | PIPING Assembly parts list →L | 1 | ||
| R902438665 | PIPING Assembly parts list →L | 1 | ||
| R902450753 | POWER DIAGRAM | 1 | ||
| R909154478 | SCREW PLUG | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| 60 | R909154493 | SAFETY CAP | 2 |
