Assembly

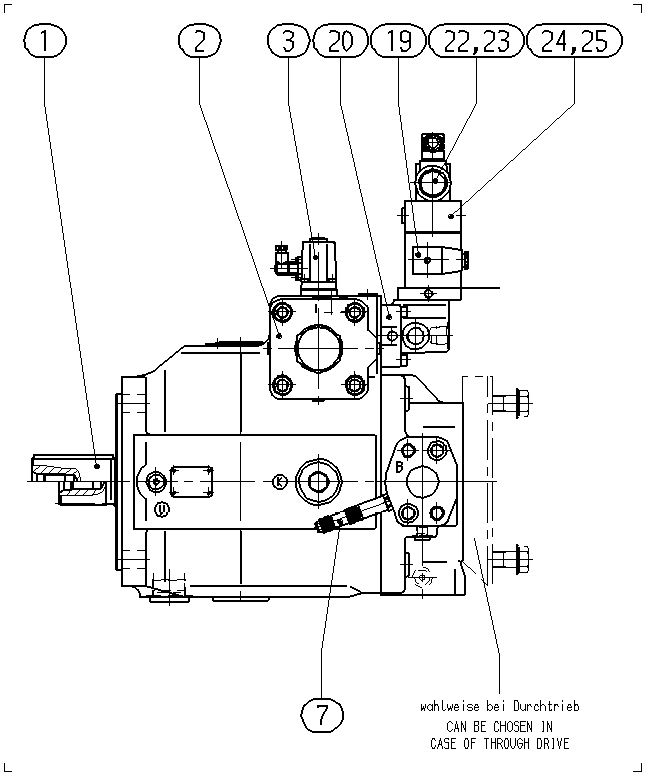

AXIAL-PISTON PUMPR902481674
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902482443 | BASE UNIT Assembly parts list →L | 1 | ||
| R910984244 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902422923 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902539274 | PRESSURE SENSOR Assembly parts list →L | 1 | ||
| R910908570 | FILTER Assembly parts list →L | 1 | ||
| R910984174 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902437418 | VALVE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910991608 | ADAPTER PLATE | 1 | ||
| R910359572 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902460828 | FLANGE COVER | 1 | |
| 62 | R902602206 | SEAL SCREW | 1 | |
| 63 | R902564145 | SHIPPING PROTECTION | 1 | |
| 71 | R902602334 | FLANGE COVER | 1 | |
| 81 | R902602011 | SEAL SCREW | 1 | |
| 82 | R902602011 | SEAL SCREW | 1 |
