Assembly

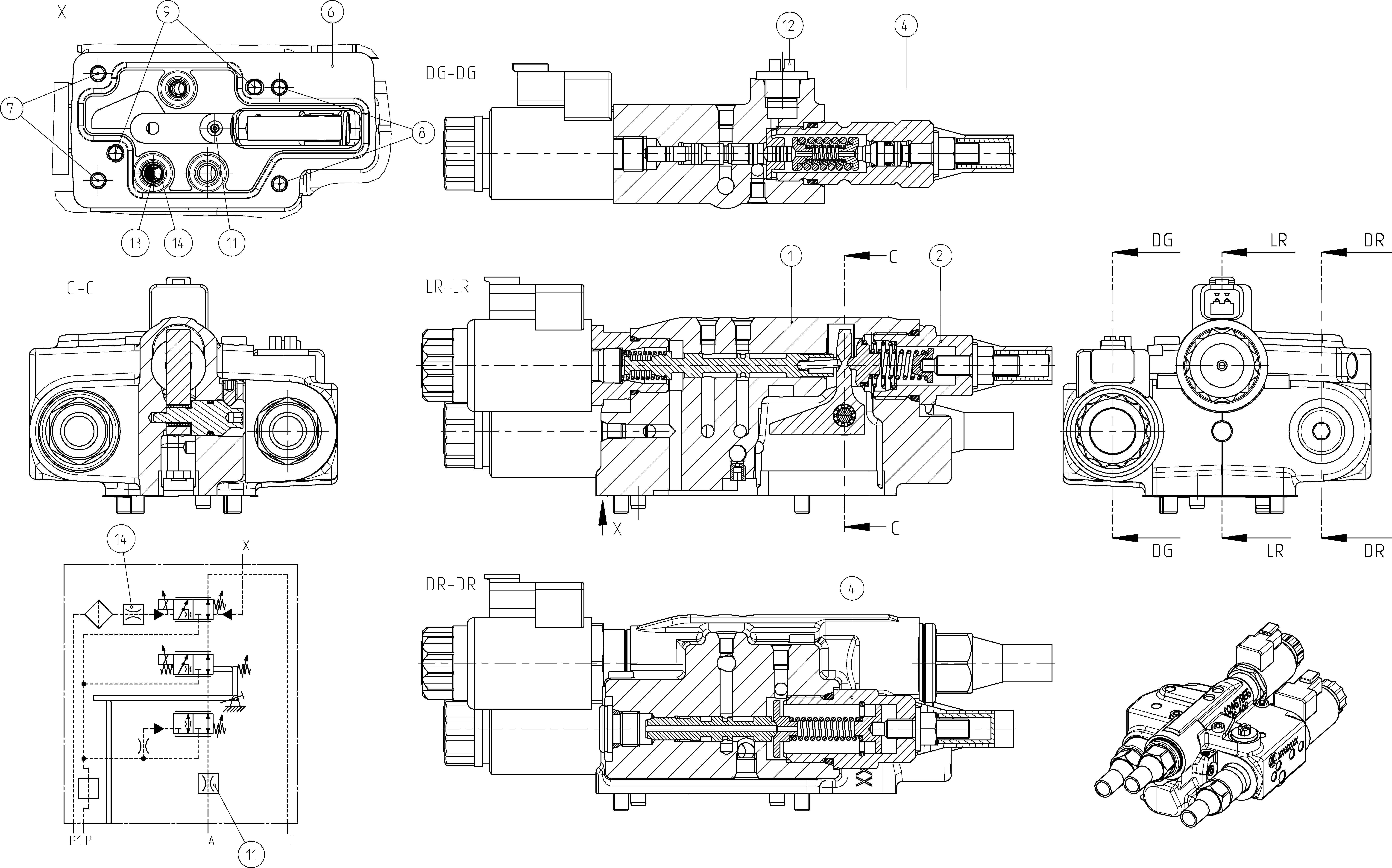

CONTROL VALVER902556825
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902556013 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902471093 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902514430 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902535605 | THROTTLE VALVE | 1 | ||
| R902531395 | FLAT GASKET | 1 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 2 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 2 | ||
| R900716536 | STRAIGHT PIN | 2 | ||
| R909156494 | NOZZLE | 1 | ||
| R902602008 | SEAL SCREW | 1 | ||
| R902603777 | FILTER | 1 | ||
| R909156493 | NOZZLE | 1 |
