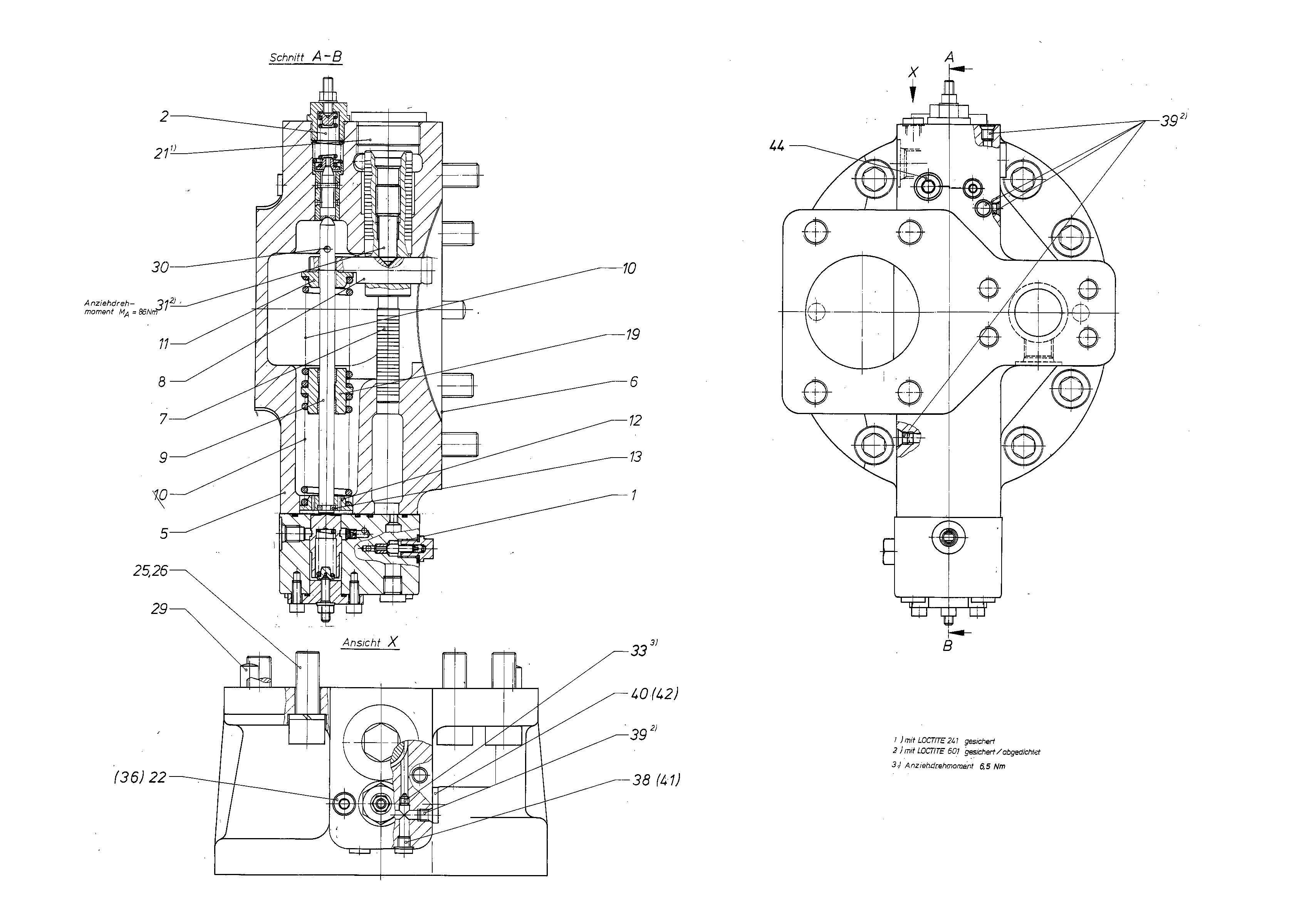

Assembly
CONTROLR909418137
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420325 | COVER Assembly parts list →L | 1 | ||
| R909400050 | CONTROL PART Assembly parts list →L | 1 | ||
| R909418138 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R909440451 | SEALD | 1 | ||
| R909409967 | POSITIONING PISTON | 1 | ||
| R909073954 | POSITIONING STUD | 1 | ||
| R909073958 | GUIDE ROD | 1 | ||
| R909402570 | COMPRESSION SPRING | 2 | ||
| R909073956 | SPRING DISK | 1 | ||
| R909073957 | SPRING DISK | 1 | ||
| R909073652 | RING | 1 | ||
| R909402561 | SPRING GUIDE Assembly parts list →L | 1 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083254 | SPRING LOCK WASHER | 8 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R913016375 | SLOTTED SPRING PIN | 1 | ||
| R909408958 | SETSCREW | 1 | ||
| R909156494 | NOZZLE | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 |
