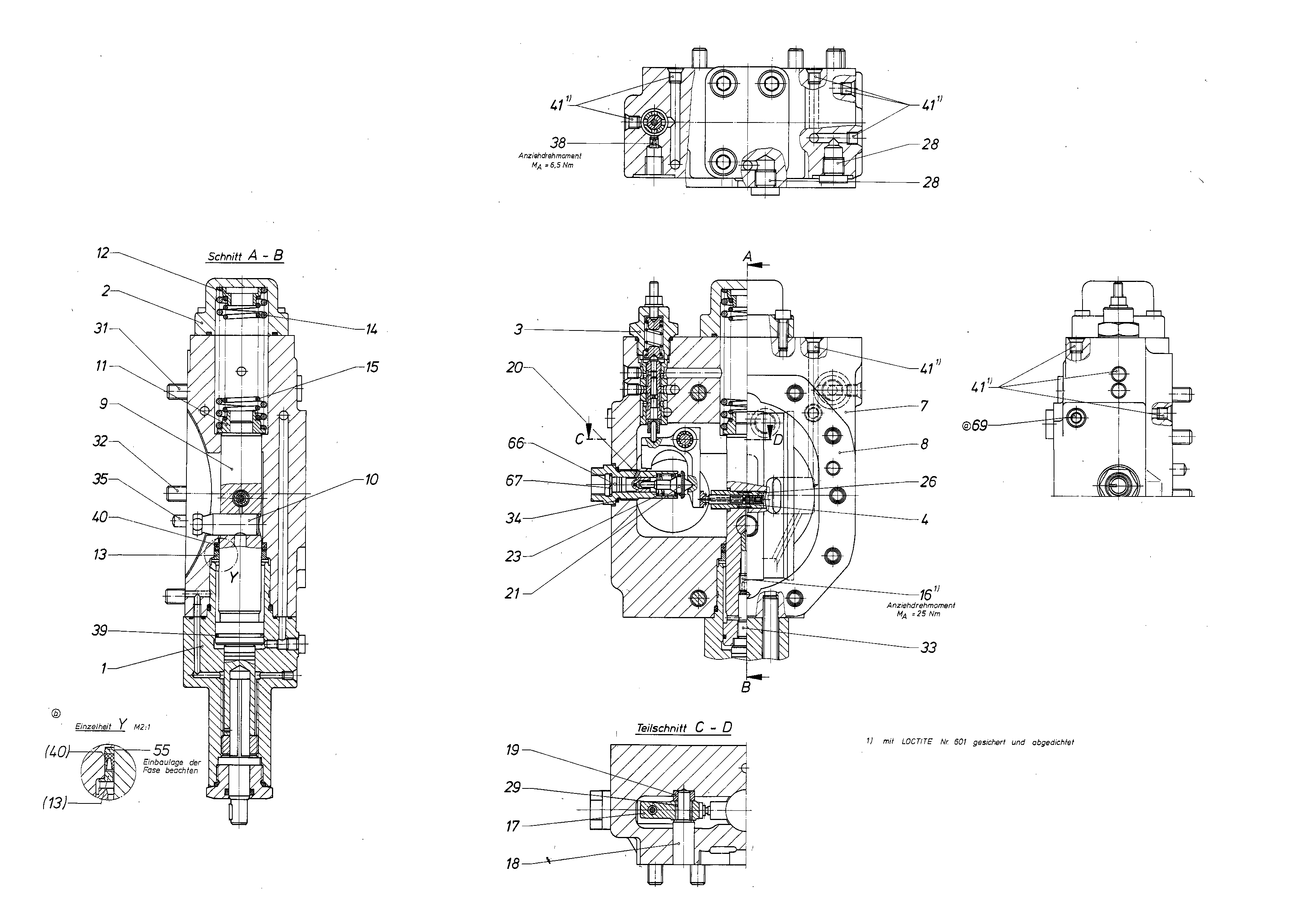

Assembly
CONTROLR909420458
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909417022 | STROKE LIMITER Assembly parts list →LD | 1 | ||
| R909414175 | COVER Assembly parts list →L | 1 | ||
| R909417041 | CONTROL PART Assembly parts list →L | 1 | ||
| R909419390 | PISTON PAD | 1 | ||
| R909430784 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024642 | SEALD | 1 | ||
| R909425516 | POSITIONING PISTON | 1 | ||
| R909425518 | POSITIONING STUD | 1 | ||
| R909416594 | SPRING DISK | 1 | ||
| R909416593 | SPRING DISK | 1 | ||
| R909422951 | RING | 1 | ||
| R909416021 | COMPRESSION SPRING | 1 | ||
| R909416333 | COMPRESSION SPRING | 1 | ||
| R909416798 | SETSCREW | 1 | ||
| R909416597 | LEVER | 1 | ||
| R909416683 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909420452 | SCREW PLUG | 1 | ||
| R909420451 | SPRING BOLT | 1 | ||
| R909074314 | COMPRESSION SPRING | 1 | ||
| R909425553 | ADJUSTING BUSH | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083061 | SOCKET HEAD CAP SCREW | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| 36 | R909152425 | SEALING NUTD | 1 | |
| R909156492 | NOZZLE | 1 | ||
| R902602841 | STEEL SEALING RINGD | 1 | ||
| R909156544 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909422952 | WASHER | 1 | ||
| R909419245 | PISTON | 1 | ||
| R909156539 | SNAP RING | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
