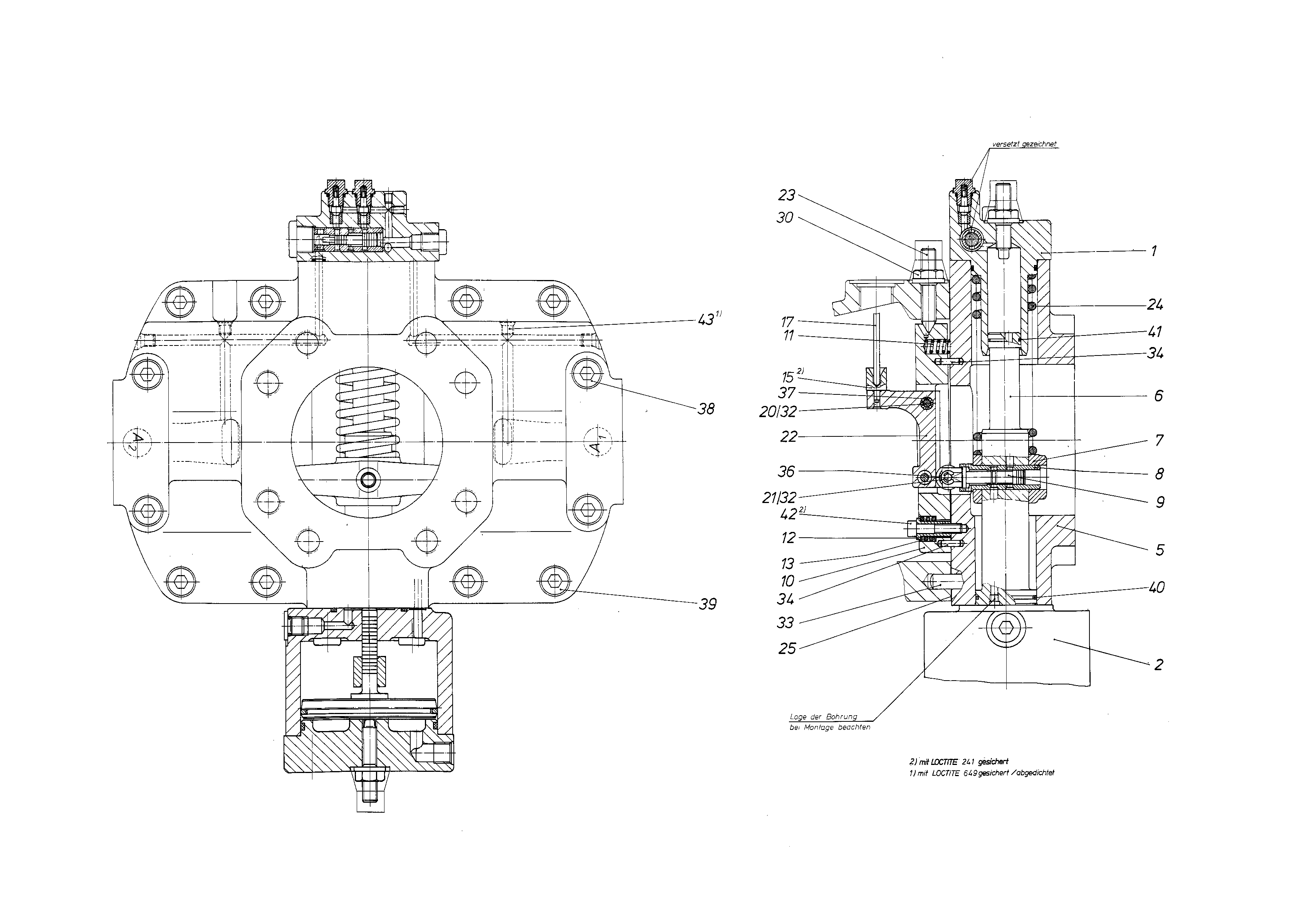

Assembly
CONTROLR909423965
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909419135 | PRESSURE REGULATOR Assembly parts list →L | 1 | |
| R909416405 | STROKE LIMITER Assembly parts list →L | 1 | ||
| R909426301 | CONTROL HOUSING | 1 | ||
| 6 | R909412868 | POSITIONING PISTON | 1 | |
| R909415155 | SWIVEL FORK | 1 | ||
| 8 | R909412866 | CONTROL SLEEVE | 1 | |
| 9 | R909412867 | CONTROL PISTON | 1 | |
| R902004384 | BEARING PEDESTAL | 1 | ||
| R909073211 | COMPRESSION SPRING | 1 | ||
| R909418581 | BACK-UP BUSHING | 1 | ||
| R909418577 | COMPRESSION SPRING | 1 | ||
| 15 | R909419620 | LOCATION PIECE | 1 | |
| 17 | R909421731 | PIN | 1 | |
| 20 | R909415924 | BOLT | 2 | |
| 21 | R909411212 | BOLT | 1 | |
| R909419126 | REGULATOR LEVER | 1 | ||
| R909412369 | SETSCREW | 1 | ||
| R909411422 | COMPRESSION SPRING | 1 | ||
| R909650531 | SEALD | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| 32 | R909085810 | LOCKING WASHER | 6 | |
| R913007909 | STRAIGHT PIN | 2 | ||
| 2917890095 | STRAIGHT PIN | 2 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909156271 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 8 | ||
| R909156479 | R-RINGD | 1 | ||
| 41 | R902602854 | STEEL SEALING RINGD | 1 | |
| 42 | R909083024 | SOCKET HEAD CAP SCREW | 1 | |
| 43 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 |
