Assembly

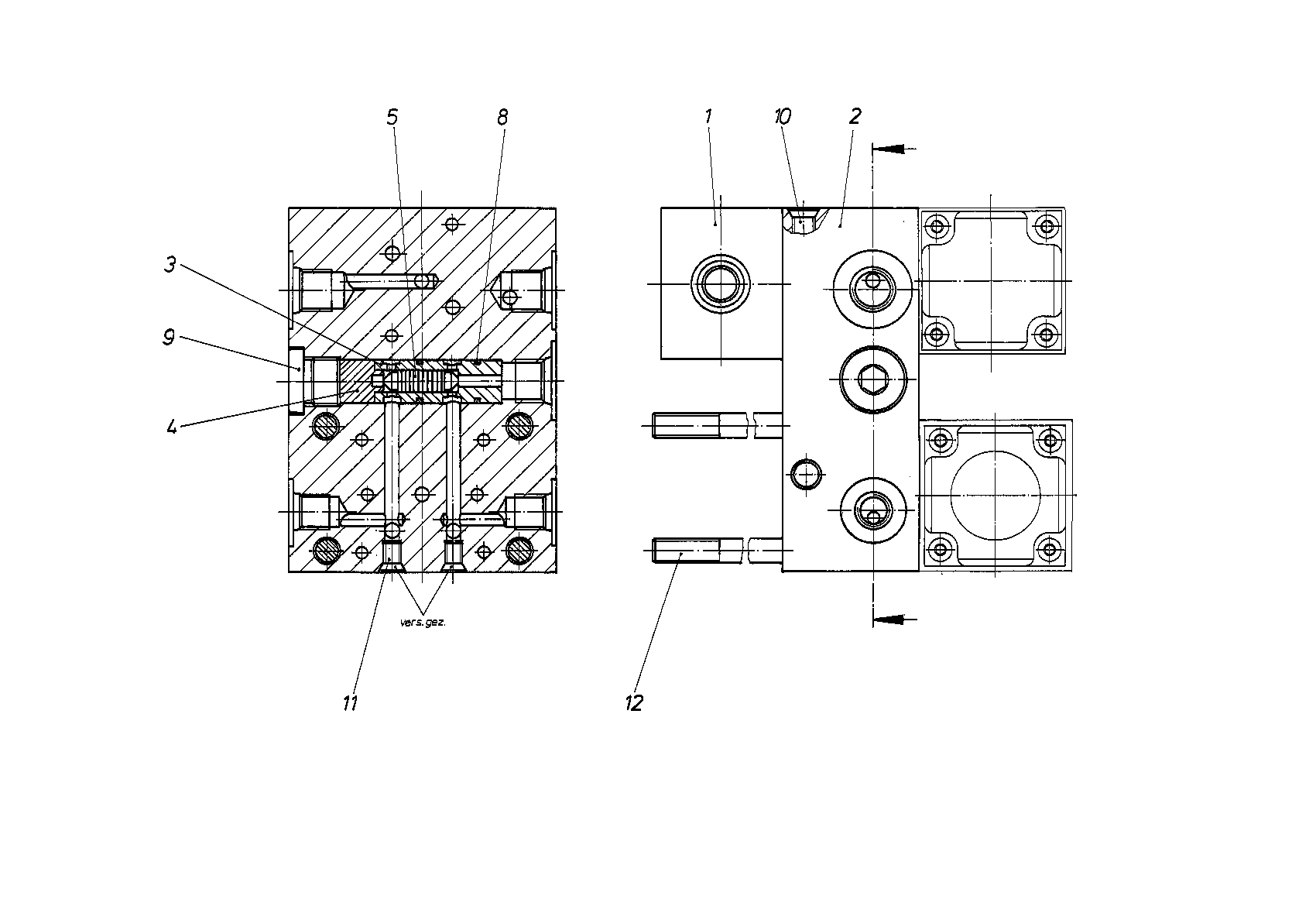

CONTROL MODULER909424241
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909424242 | ROTARY ORIFICE Assembly parts list →L | 1 | |
| 2 | R909424174 | CONNECTION PLATE | 1 | |
| 3 | R909424186 | VALVE BUSHING | 1 | |
| 4 | R909424185 | VALVE SEAT | 1 | |
| 5 | R909421999 | VALVE SPOOL | 1 | |
| 8 | R909831885 | STEEL SEALING RING | 2 | |
| 9 | R909153816 | SCREW PLUGD | 1 | |
| 10 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 11 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909083054 | SOCKET HEAD CAP SCREW | 4 |
