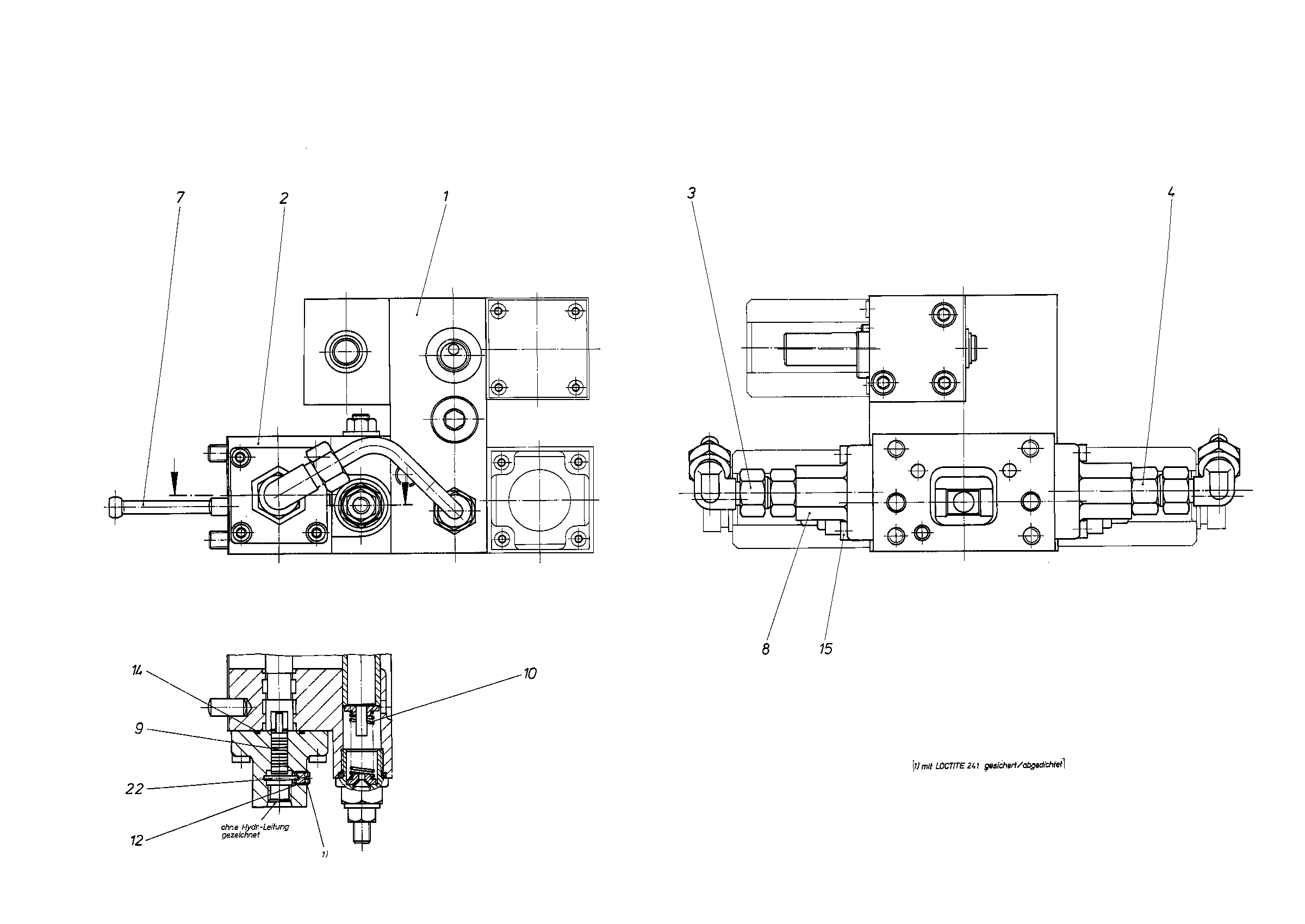

Assembly
CONTROL MODULER909424485
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909424241 | CONTROL MODULE Assembly parts list →L | 1 | ||
| 2 | R909424472 | CONTROL MODULE Assembly parts list →L | 1 | |
| 3 | R909424284 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| R909424282 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909424825 | FEEDBACK LEVER | 1 | ||
| R902007557 | HOUSING | 2 | ||
| 9 | R909424997 | PISTON | 2 | |
| R909425598 | COMPRESSION SPRING | 2 | ||
| R902016196 | SETSCREW | 2 | ||
| 14 | R909083737 | O-RINGD | 2 | |
| R909083010 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157016 | STRAIGHT PIN | 2 |
