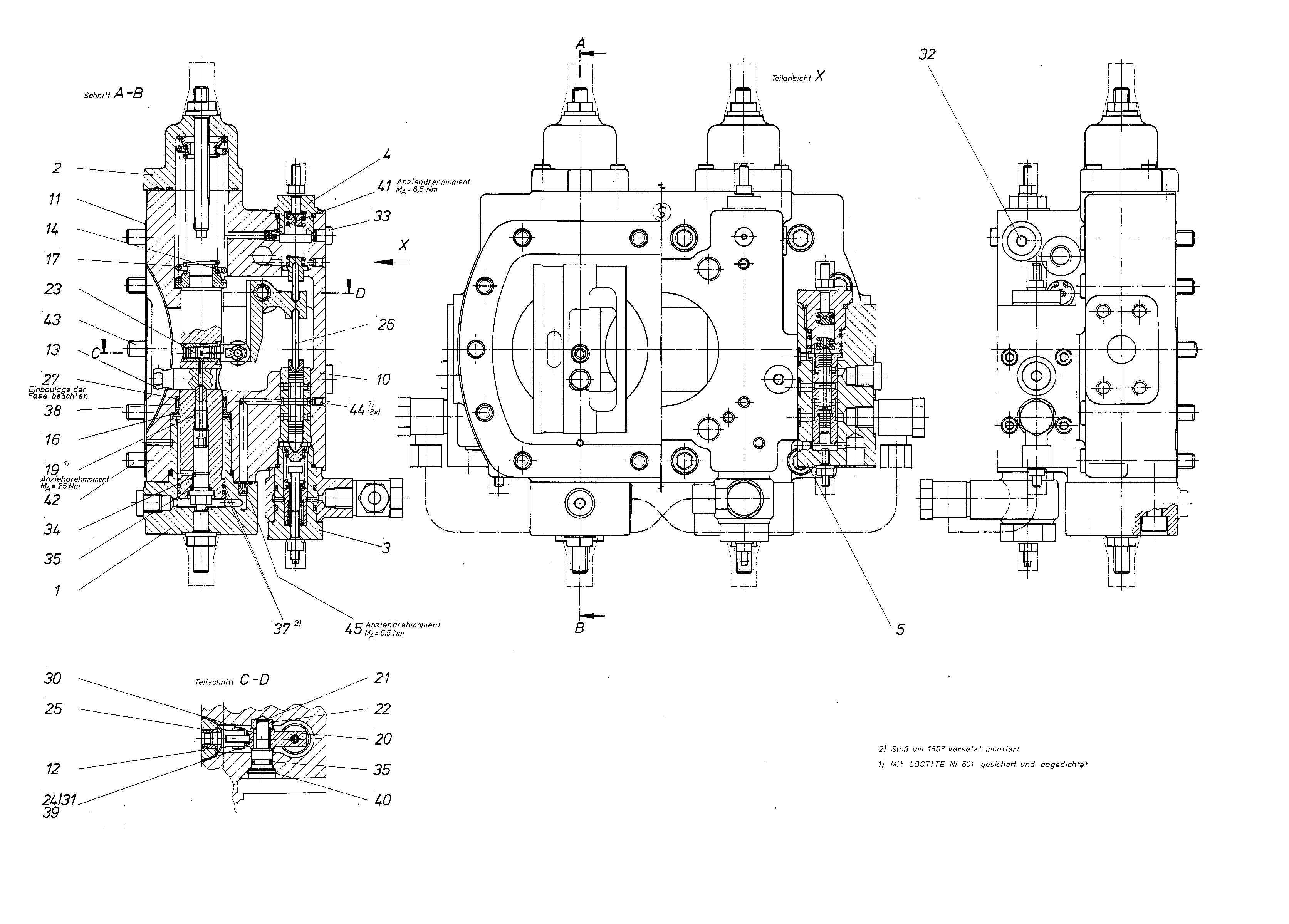

Assembly
CONTROLR909425197
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418657 | COVER Assembly parts list →L | 2 | ||
| R909418658 | COVER Assembly parts list →L | 2 | ||
| 3 | R909420175 | CONTROL PART Assembly parts list →L | 2 | |
| R909420346 | ADJUSTING PART Assembly parts list →L | 2 | ||
| 5 | R909425198 | SEQUENCE VALVE Assembly parts list →L | 2 | |
| R909425846 | CONTROL HOUSING | 1 | ||
| 11 | R909650390 | SEALD | 1 | |
| R909424627 | POSITIONING PISTON | 2 | ||
| R909425518 | POSITIONING STUD | 2 | ||
| 14 | R909416594 | SPRING DISK | 2 | |
| R909422951 | RING | 2 | ||
| R909416021 | COMPRESSION SPRING | 2 | ||
| 19 | R909449055 | SETSCREW | 2 | |
| 20 | R909418642 | LEVER | 2 | |
| 21 | R909418641 | BEARING BOLT | 2 | |
| R909412689 | BUSHING | 2 | ||
| 23 | R909420209 | MEASURING PISTON | 2 | |
| 24 | R909411231 | BOLT | 2 | |
| 25 | R909420208 | MEASURING BUSHING | 2 | |
| 26 | R909421355 | PIN | 2 | |
| 27 | R909422952 | WASHER | 2 | |
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| 31 | R909087327 | DEEP-GROOVE BALL BEARING | 2 | |
| R909151979 | SCREW PLUGD | 4 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909083236 | SCREW PLUG | 2 | ||
| R909083749 | O-RINGD | 4 | ||
| 37 | R902602841 | STEEL SEALING RINGD | 4 | |
| R909156544 | ROD SEALD | 2 | ||
| 39 | R909085810 | LOCKING WASHER | 4 | |
| 40 | R909083382 | RETAINING RING | 2 | |
| 41 | R909156492 | NOZZLE | 2 | |
| R909083070 | SOCKET HEAD CAP SCREW | 12 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| 44 | R909831317 | DOUBLE BREAK-OFF PLUG | 5 | |
| 45 | R909156494 | NOZZLE | 2 |
