Assembly

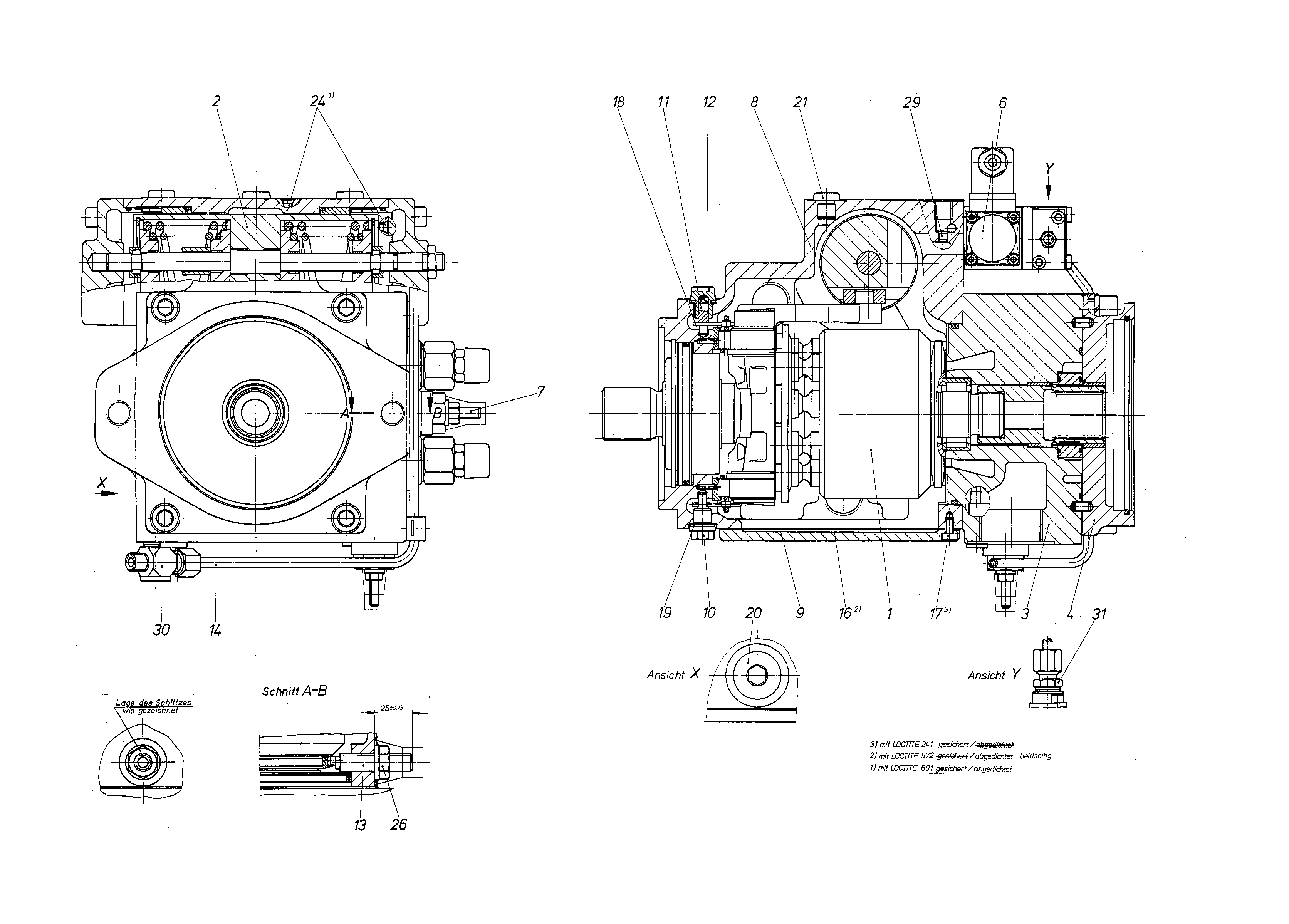

AXIAL-PISTON PUMPR909427279
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909427268 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909433502 | CONTROL Assembly parts list →L | 1 | ||
| R909428180 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909428167 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909437714 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909415058 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R909417670 | HOUSING | 1 | ||
| R909430387 | HOUSING COVER | 1 | ||
| R909414228 | SCREW PLUG | 2 | ||
| R909449291 | PIVOT PIN | 2 | ||
| R909405758 | ECCENTRIC SCREW | 1 | ||
| R909430496 | HYDRAULIC LINE | 1 | ||
| R909435278 | SEALD | 1 | ||
| R909083017 | SOCKET HEAD CAP SCREW | 12 | ||
| R913016374 | SLOTTED SPRING PIN | 2 | ||
| R909152726 | SEAL RINGD | 2 | ||
| R909153891 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909156495 | NOZZLE | 2 | ||
| R909156369 | SWIVEL TUBE FITTING | 1 | ||
| R909083315 | THREADED FASTENER | 1 | ||
| 98 | R902095777 | SEAL KIT | 1 |
