Assembly

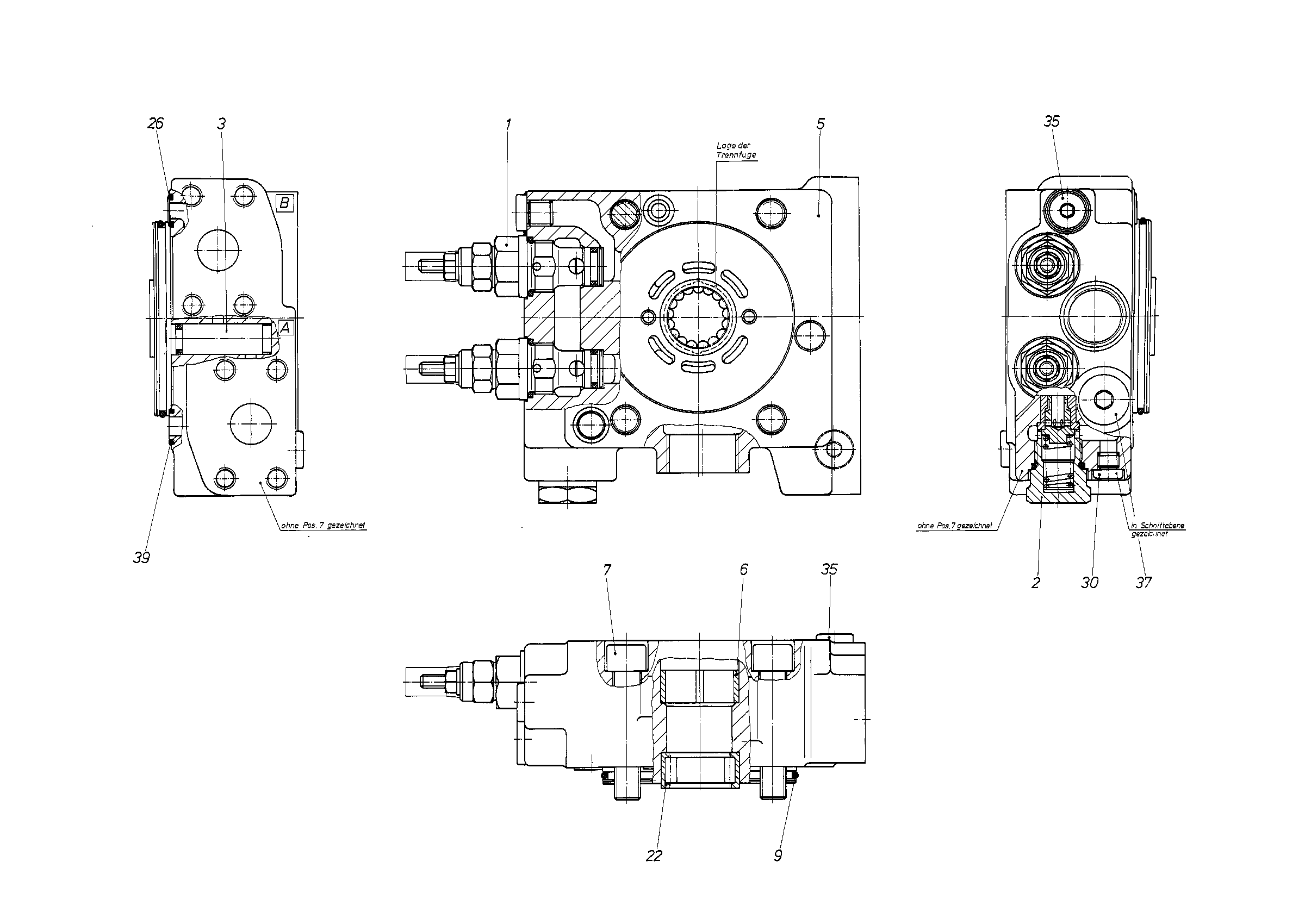

CONNECTION PLATER909427590
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909419675 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909433667 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909427560 | LOCKING SET | 1 | ||
| R909449031 | CONNECTION PLATE | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R909153287 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085360 | O-RINGD | 1 | ||
| R909153245 | CYL. ROLLER BEARING | 1 | ||
| R909086332 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909086333 | O-RINGD | 1 |
