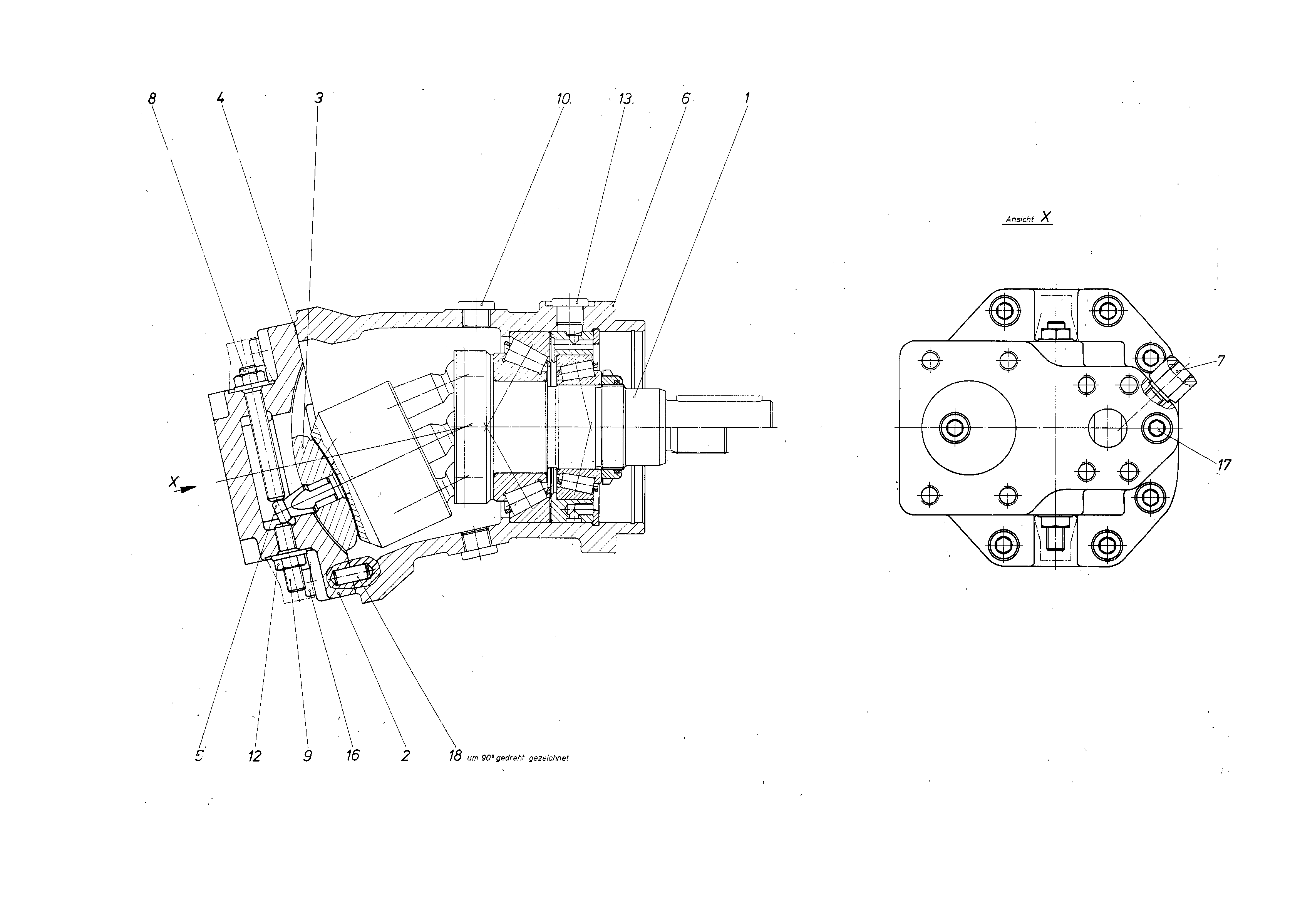

Assembly
AXIAL-PISTON PUMPR909427627
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428956 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909430076 | CONNECTION PLATE | 1 | ||
| R909650449 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R902024642 | SEALD | 1 | ||
| R909418094 | POSITIONING STUD | 1 | ||
| R909417908 | HOUSING | 1 | ||
| R909066231 | THREADED REDUCING STUD | 1 | ||
| R909154058 | SETSCREW | 1 | ||
| R909084549 | SETSCREW | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909152426 | SEALING NUTD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909083061 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 |
