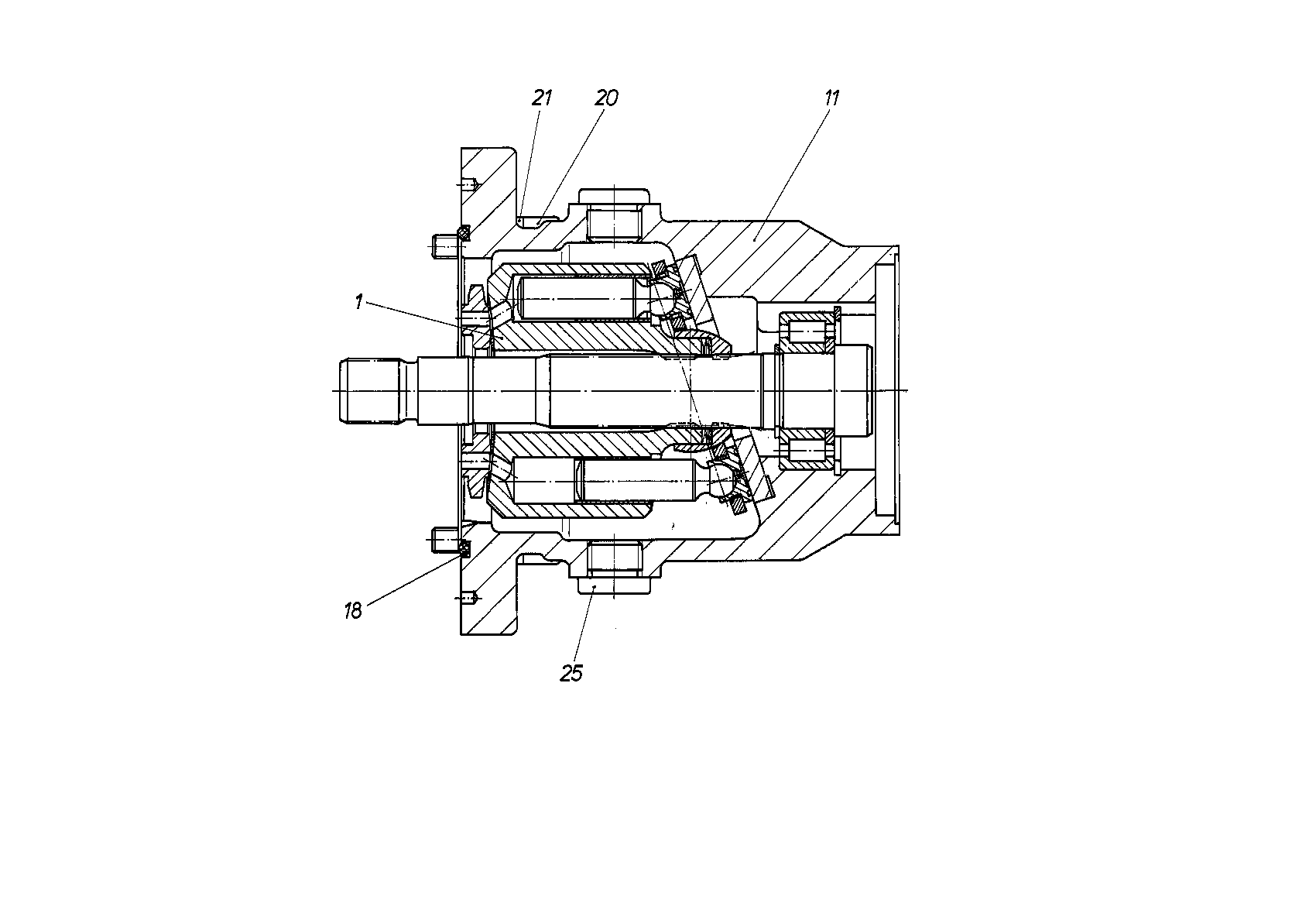

Assembly
AXIAL-PISTON PUMPR909429792
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909434323 | ROTARY GROUP Assembly parts list →L | 1 | |
| 11 | R909432041 | HOUSING | 1 | |
| R909085365 | O-RINGD | 1 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 4 | ||
| 21 | R909083252 | SPRING LOCK WASHER | 4 | |
| 25 | R909153815 | SCREW PLUGD | 2 |
