Assembly

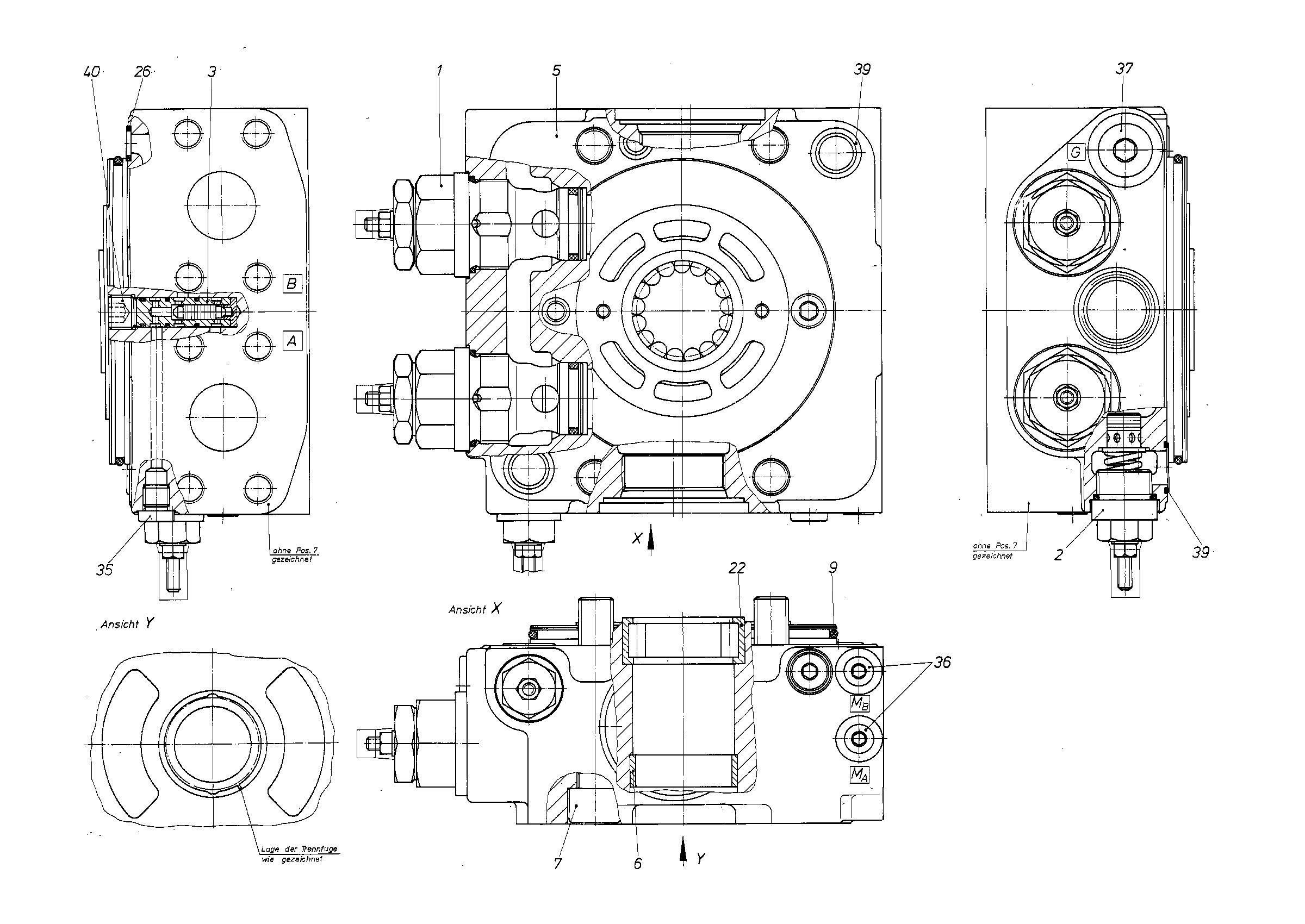

CONNECTION PLATER909433412
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909427556 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909433403 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R902017415 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R909432636 | CONNECTION PLATE | 1 | ||
| R909432660 | BUSHING | 1 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 4 | ||
| R909830133 | O-RINGD | 1 | ||
| R909156310 | CYL. ROLLER BEARING | 1 | ||
| R909830089 | QUAD RINGD | 1 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909086432 | O-RINGD | 2 | ||
| R909422880 | SETSCREW | 1 |
