Assembly

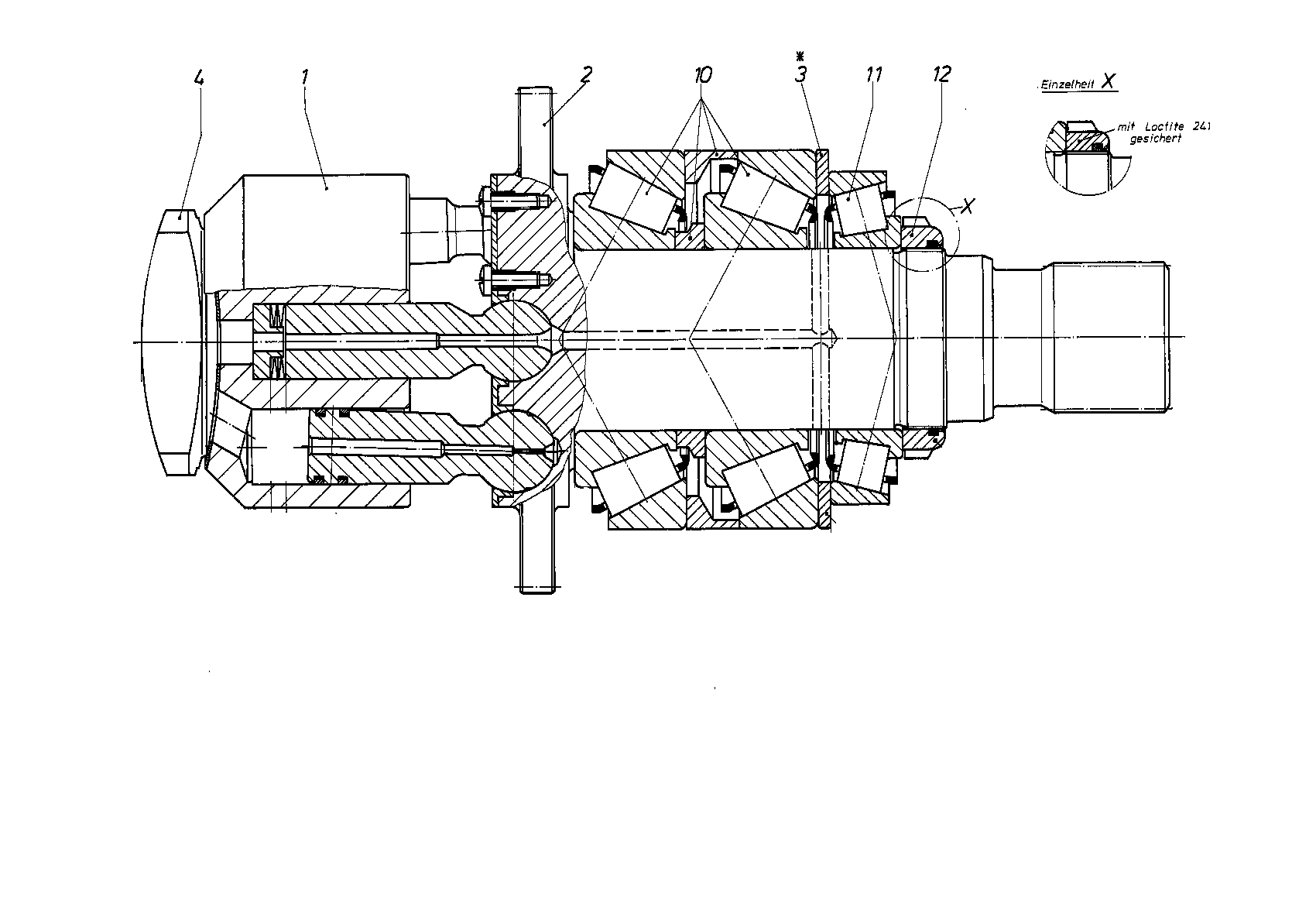

ROTARY GROUPR909434733
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909442734 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909435859 | DRIVE SHAFT | 1 | |
| 3 | R909415971 | SHIM RING | 1 | |
| 3 | R909415972 | SHIM RING | 1 | |
| 3 | R909415973 | SHIM RING | 1 | |
| 3 | R909415974 | SHIM RING | 1 | |
| 3 | R909415975 | SHIM RING | 1 | |
| 4 | R909650453 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | |
| 10 | R909156512 | TAPERED-ROLLER BEARING UNIT | 1 | |
| 11 | R909151103 | TAPERED-ROLLER BEARING | 1 | |
| R902038773 | SLOTTED ROUND NUT | 1 |
