Assembly

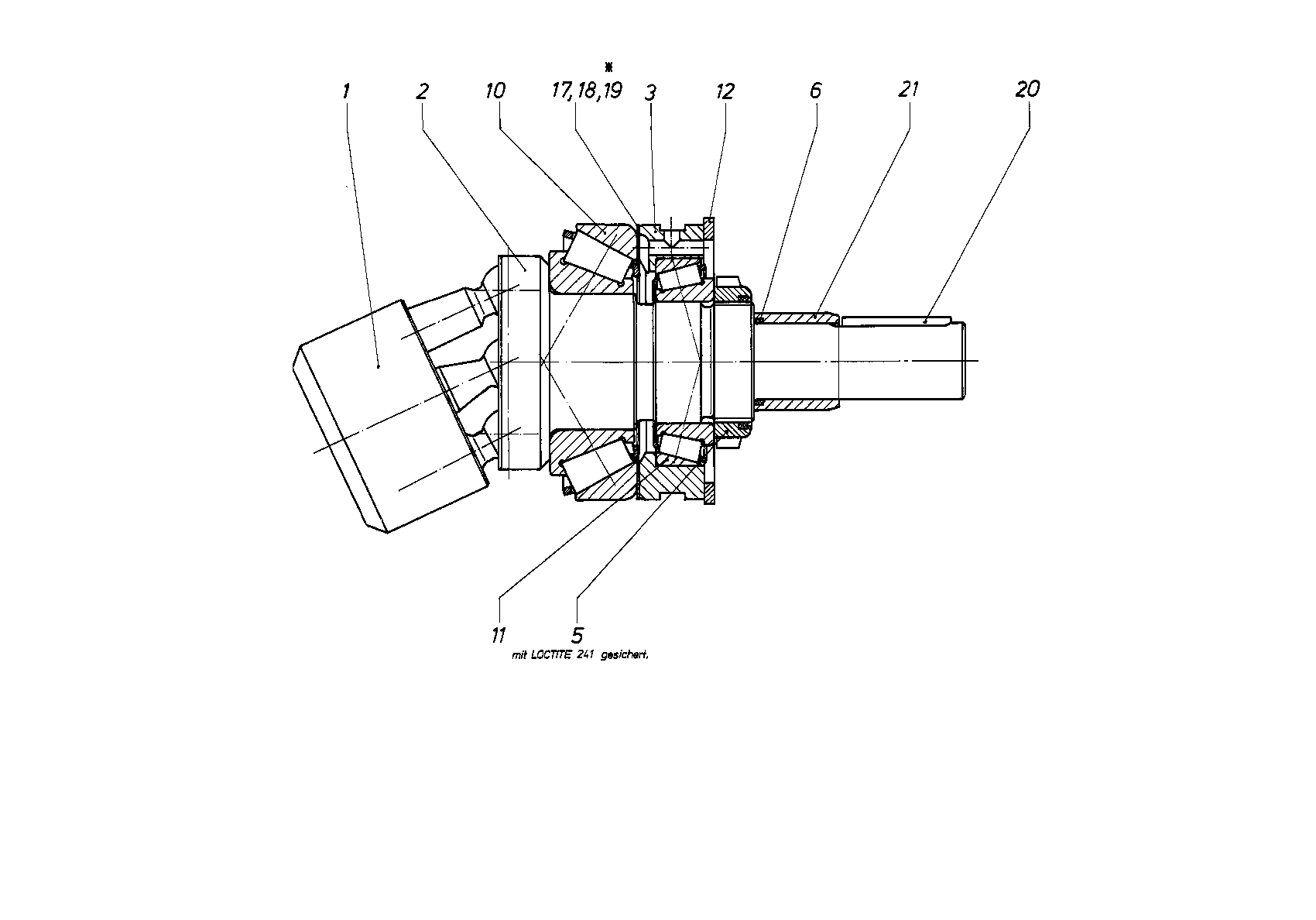

ROTARY GROUPR909434809
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909434812 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909436018 | DRIVE SHAFT | 1 | ||
| 3 | R909408886 | BEARING RING | 1 | |
| 5 | R909156220 | SLOTTED ROUND NUT | 1 | |
| R909154333 | O-RINGD | 1 | ||
| R909154685 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154686 | TAPERED-ROLLER BEARING | 1 | |
| R909083416 | RETAINING RING | 1 | ||
| 17 | R909084588 | SHIM RING | 2 | |
| 18 | R909084589 | SHIM RING | 1 | |
| 19 | R909153821 | SHIM RING | 1 | |
| R909430624 | PARALLEL KEY | 1 | ||
| 21 | R909436017 | BUSHINGD | 1 |
