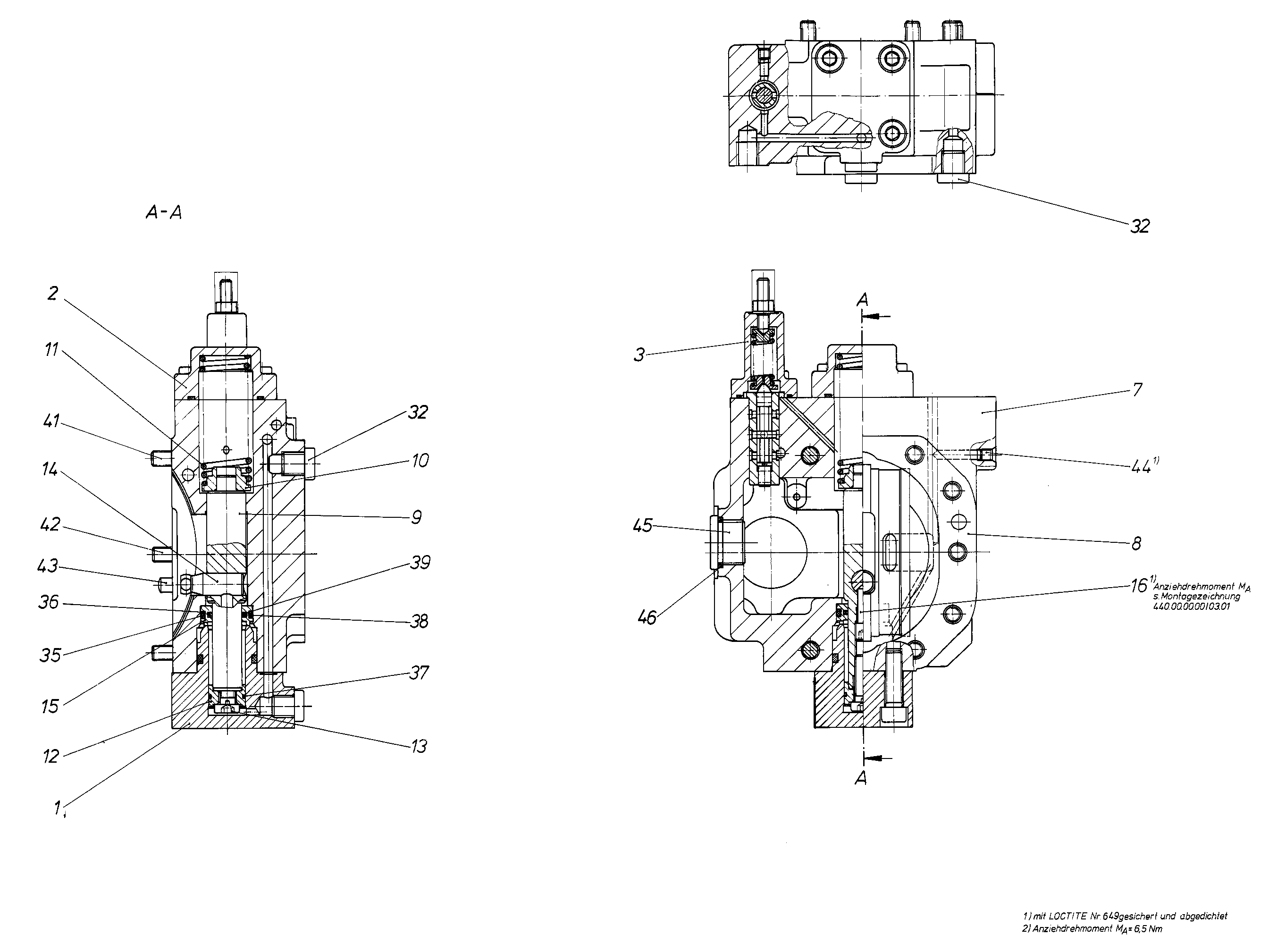

Assembly
CONTROLR909438446
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902014053 | GUIDE COVER Assembly parts list →L | 1 | ||
| R909437498 | COVER Assembly parts list →L | 1 | ||
| R909437499 | CONTROL PART Assembly parts list →L | 1 | ||
| R902014188 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024641 | SEALD | 1 | ||
| R909430103 | POSITIONING PISTON | 1 | ||
| R909430100 | SPRING DISK | 1 | ||
| R909426527 | COMPRESSION SPRING | 1 | ||
| R909430099 | PISTON | 1 | ||
| R909083191 | SOCKET HEAD CAP SCREW | 1 | ||
| R909425515 | POSITIONING STUD | 1 | ||
| R909430101 | SEAL RING | 1 | ||
| R909409589 | SETSCREW | 1 | ||
| R909156650 | SCREW PLUGD | 2 | ||
| R909152694 | O-RINGD | 1 | ||
| R909157774 | BACKUP RINGD | 1 | ||
| R909153873 | R-RINGD | 1 | ||
| R909157773 | ROD SEALD | 1 | ||
| R909154317 | O-RINGD | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909083226 | SCREW PLUG | 1 | ||
| R909154316 | O-RINGD | 1 |
