Assembly

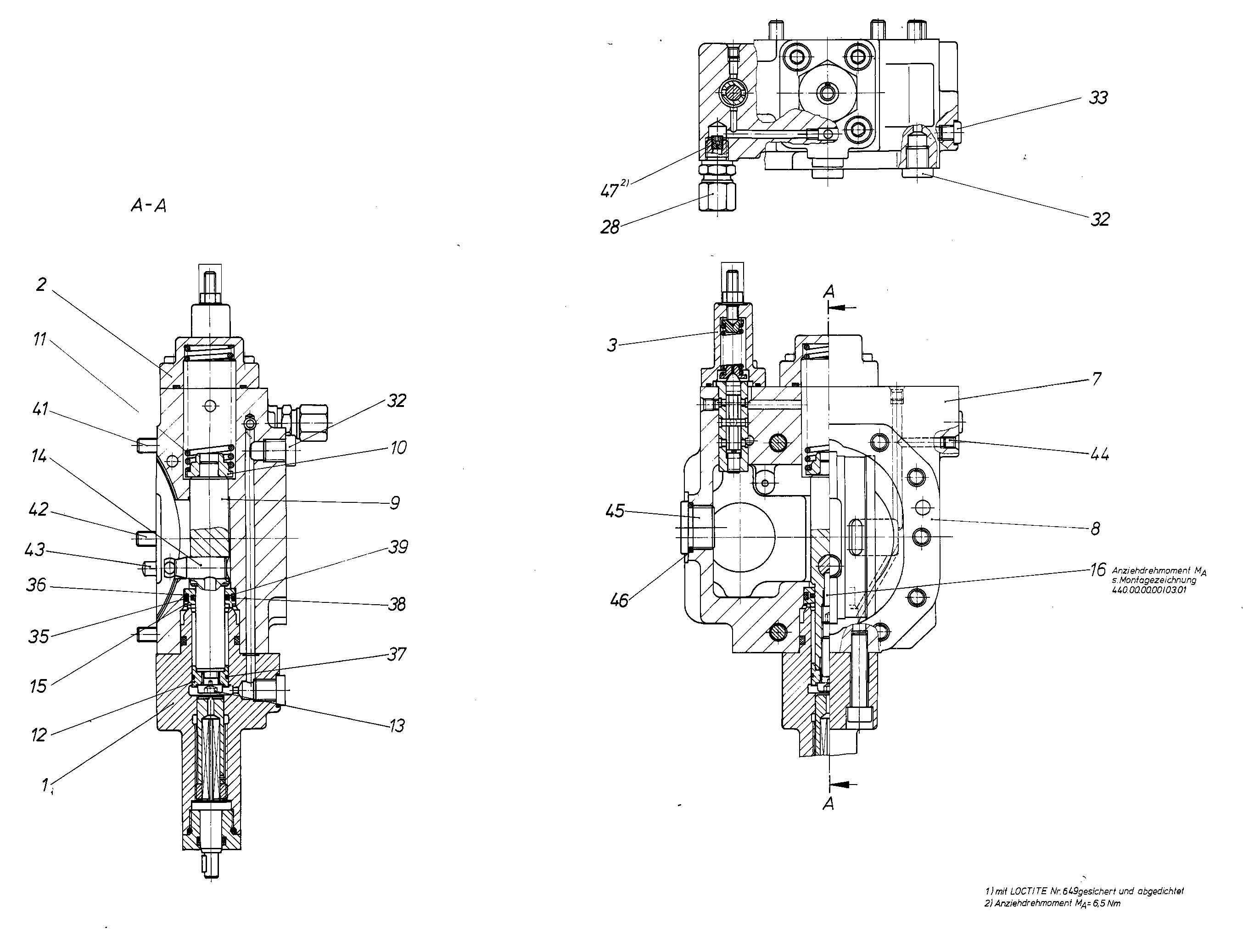

CONTROLR909438662
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429522 | STROKE LIMITER Assembly parts list →L | 1 | ||
| R909427187 | COVER Assembly parts list →L | 1 | ||
| R909427553 | CONTROL PART Assembly parts list →L | 1 | ||
| R909426410 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024641 | SEALD | 1 | ||
| R909430103 | POSITIONING PISTON | 1 | ||
| R909430100 | SPRING DISK | 1 | ||
| R909426527 | COMPRESSION SPRING | 1 | ||
| R909430099 | PISTON | 1 | ||
| R909083191 | SOCKET HEAD CAP SCREW | 1 | ||
| R909425515 | POSITIONING STUD | 1 | ||
| R909430101 | SEAL RING | 1 | ||
| R909409589 | SETSCREW | 1 | ||
| R909403866 | THREADED FASTENER | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909157774 | BACKUP RINGD | 1 | ||
| R909153873 | R-RINGD | 1 | ||
| R909157773 | ROD SEALD | 1 | ||
| R909084939 | O-RINGD | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909083226 | SCREW PLUG | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909156492 | NOZZLE | 1 |
