Assembly

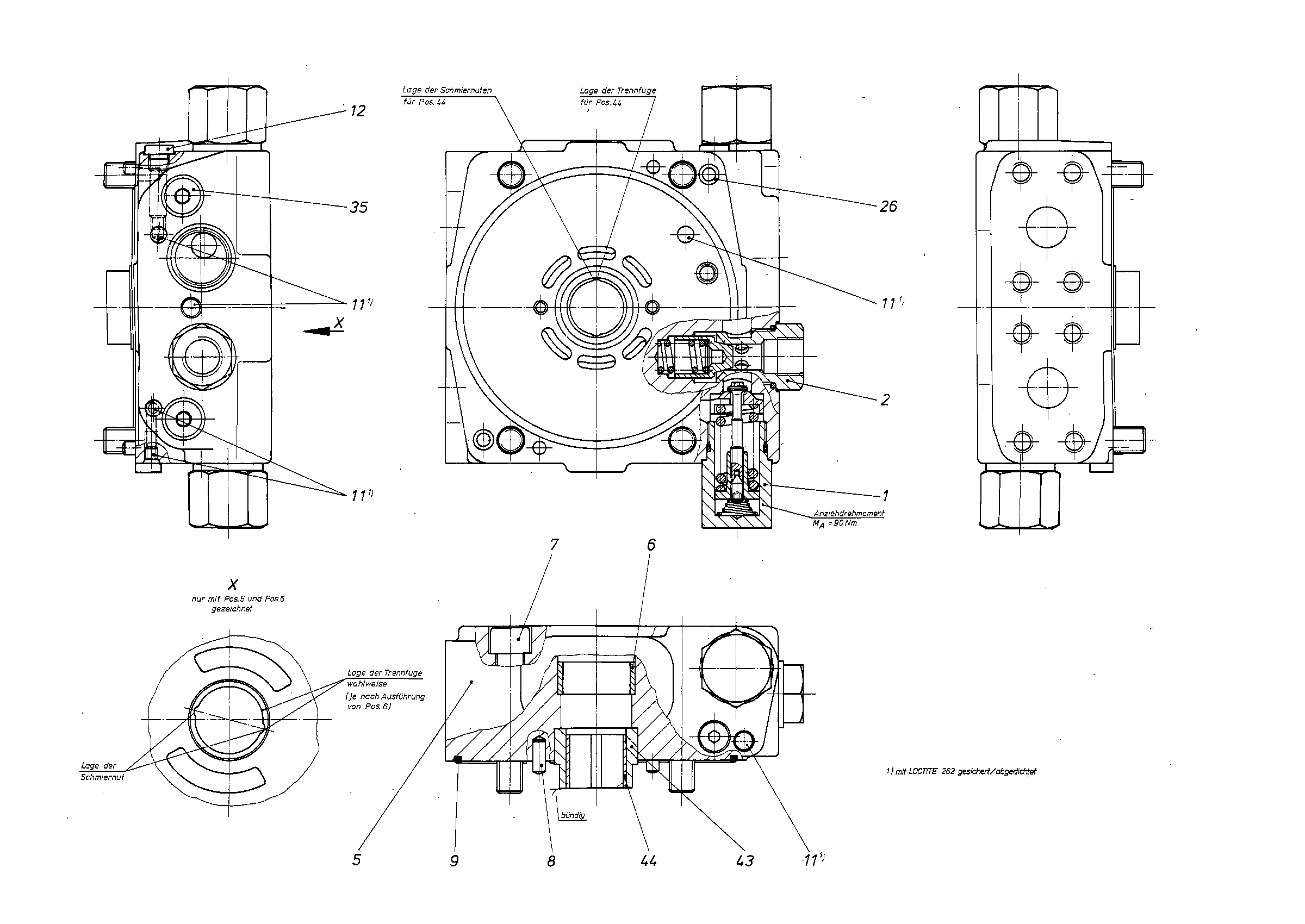

CONNECTION PLATER909441071
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909447135 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909428118 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909440575 | CONNECTION PLATE | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R909157524 | SOCKET HEAD CAP SCREW | 4 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R909085364 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909425694 | BUSHING | 1 | ||
| R902260547 | BUSHING | 1 |
