Assembly

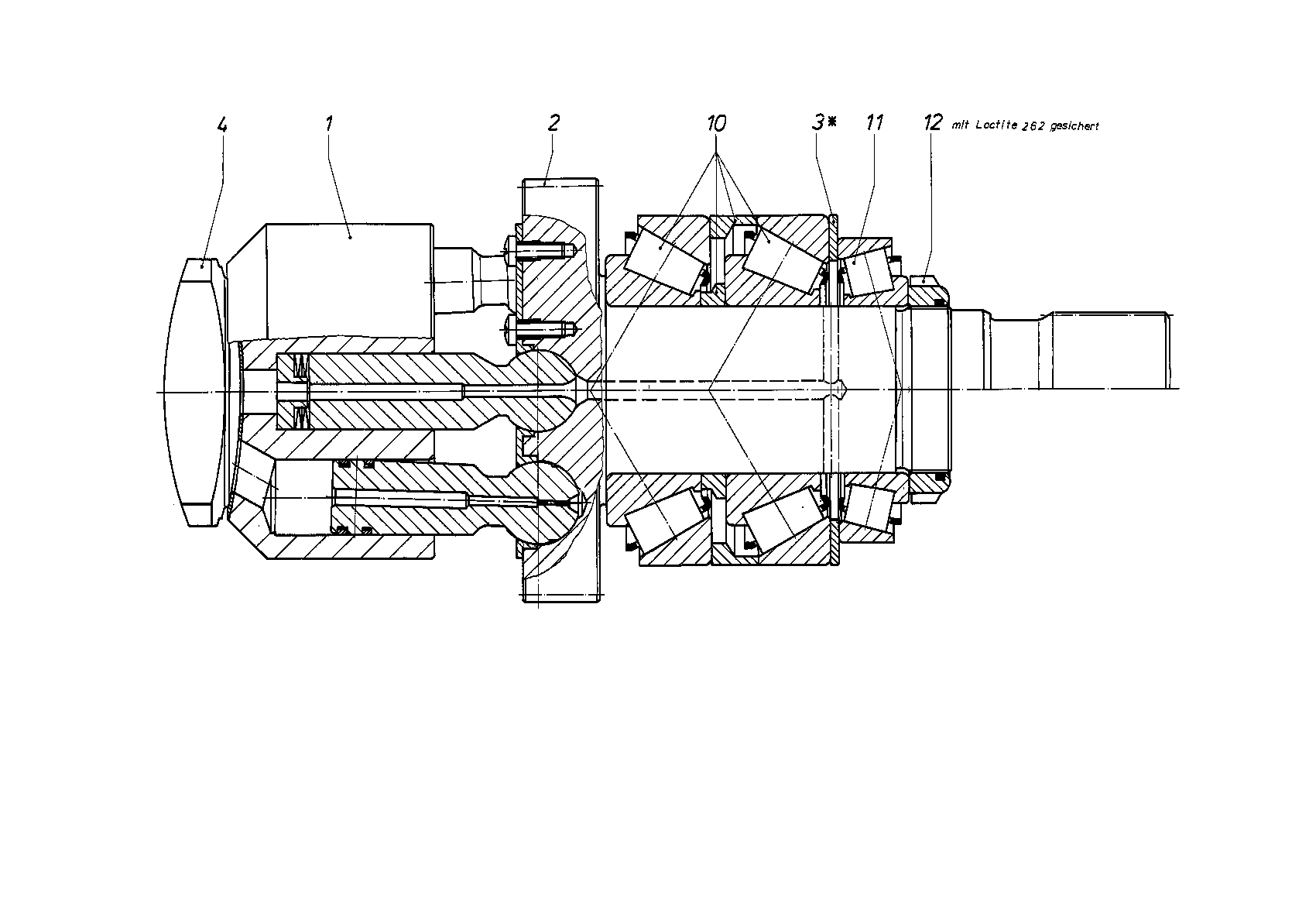

ROTARY GROUPR909441183
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909442734 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909430673 | DRIVE SHAFT | 1 | |
| 3 | R909651581 | SHIM RING | 1 | |
| 3 | R909651582 | SHIM RING | 1 | |
| 3 | R909651583 | SHIM RING | 1 | |
| 3 | R909651584 | SHIM RING | 1 | |
| 3 | R909651585 | SHIM RING | 1 | |
| 4 | R909650453 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | |
| R909154486 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| 11 | R909151102 | TAPERED-ROLLER BEARING | 1 | |
| 12 | R913037932 | SLOTTED ROUND NUT | 1 |
