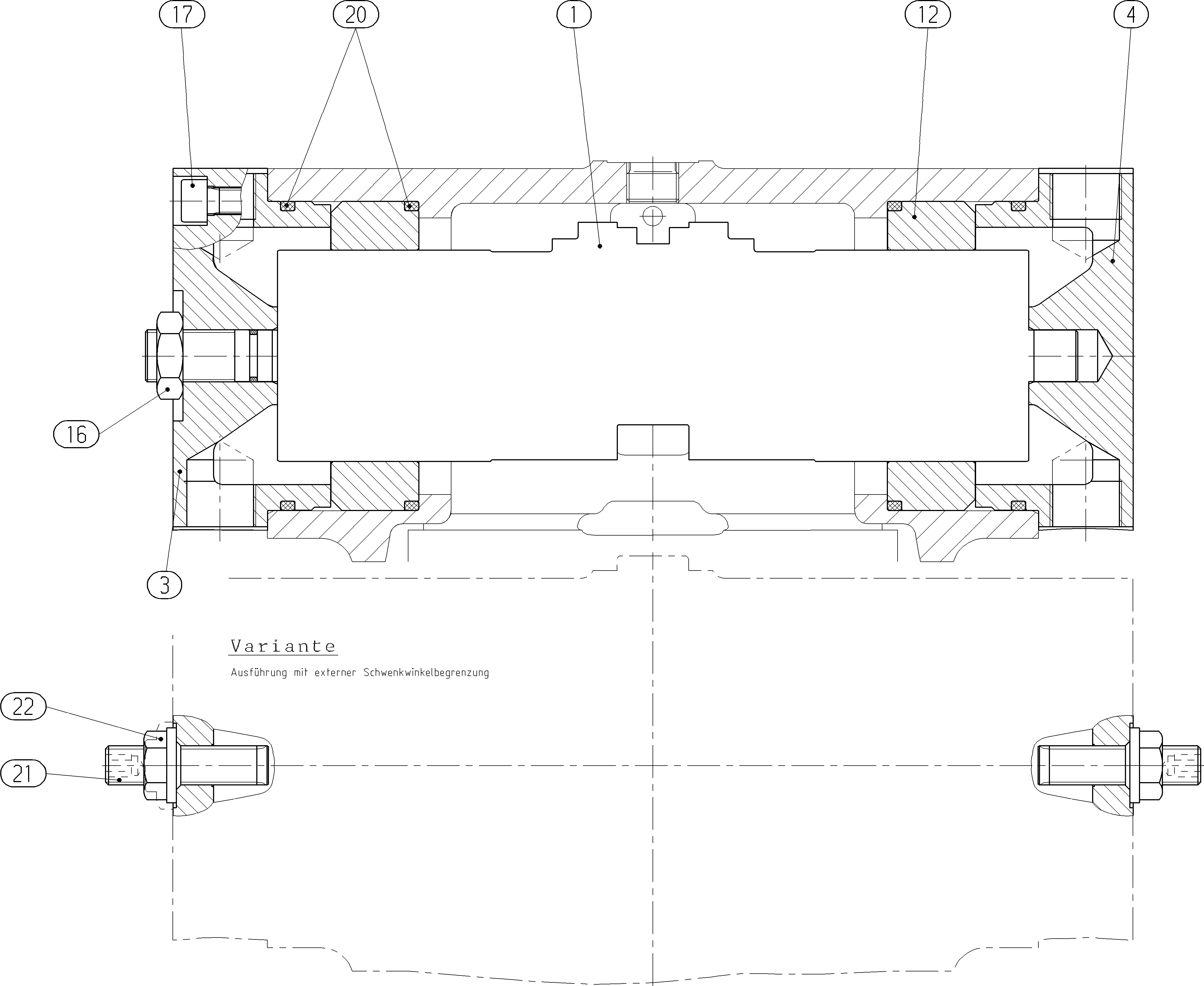

Assembly
CONTROLR909441493
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902025560 | POSITIONING PISTON Assembly parts list →L | 1 | ||
| R909443198 | COVER | 1 | ||
| R909443199 | COVER | 1 | ||
| R909440040 | BUSHING | 2 | ||
| R909157477 | HEXAGON NUT | 1 | ||
| R909083040 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083824 | O-RINGD | 4 | ||
| R909443087 | SETSCREW | 2 | ||
| R909087405 | SEALING NUTD | 2 |
